9.67. Create Feature Boundaries (2D)
Group (Subgroup)
SimplnxCore (Geometry)
Description
This Filter extracts 2D feature boundaries from an Image Geometry and creates an Edge Geometry representing the outlines of features defined by a Feature IDs array. The filter operates only in the XY plane and requires the input Image Geometry to have a Z dimension of 1.
NOTE: The “FeatureIds” array can be any integer type, not just signed int32 as is the typical featureIds arrays. This means that it can work immediately on scalar images that have not been segmented already. The user could use a basic threshold to create a unsigned int 8 mask value, then use that mask value as the input into this filter. This could be used, for example, to outline just the sample border if there is overscan or just outline specific regions of a 2D Image Geometry.
The algorithm scans the Feature IDs array and identifies boundaries where adjacent cells have different feature IDs. For each boundary, an edge (line segment) is created at the cell interface. The resulting Edge Geometry contains:
Shared Vertex List: 3D coordinates of all unique vertices at feature boundaries
Shared Edge List: Connectivity pairs defining line segments between vertices
Z Value Caveats
The filter provides three options for setting the Z coordinate of the generated vertices:
Use min z value from Image geometry: Uses the origin Z value of the input Image Geometry
Use max z value from Image geometry: Uses the origin Z plus the spacing times the Z dimension
Use Custom z Offset: Allows specifying a custom Z value for all vertices
Algorithm Details
The algorithm uses a two-pass approach for efficiency:
Count Pass: Scan to count the total number of boundary edges (both vertical and horizontal)
Populate Pass: Creation of vertices and edge connectivity
After edge creation, duplicate vertices are eliminated to ensure a clean, connected edge network.

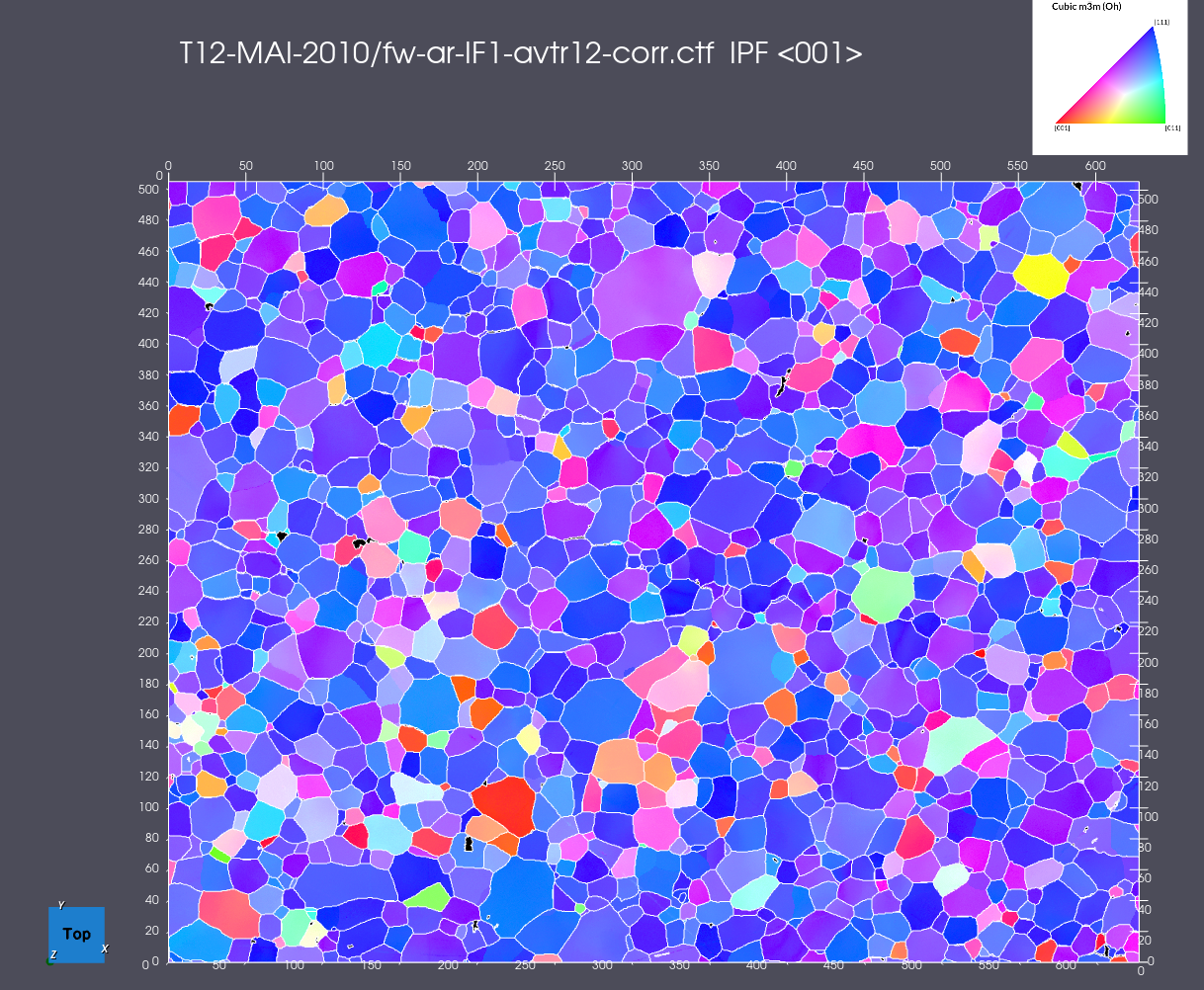

Example Output
Input Geometry
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Input Image Geometry |
Geometry Selection |
Image |
The input image geometry to create grain boundaries. |
Input Cell Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Feature Ids |
Array Selection |
Allowed Types: int8, uint8, int16, uint16, int32, uint32, int64, uint64 Comp. Shape: 1 |
The feature ids that will be used to draw the boundary edge geometry. |
Z Value Options
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Z Value Source |
Choices |
Select the source for the Z coordinate of the generated vertices |
|
Custom Z Value |
Scalar Value |
Float32 |
The custom Z offset value for the generated vertices |
Edge Extraction Options
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Extract Edges of Virtual Sample |
Bool |
Whether to extract the outer edges of the image geometry |
Output Geometry
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Output Edge Geometry |
DataGroupCreation |
The name of the created Edge Geometry |
Example Pipelines
ExtractFeatureBoundaries2D.d3dpipline
License & Copyright
Please see the description file distributed with this plugin.
