9.89. Hierarchical Smoothing

Group (Subgroup)

Surface Meshing (Smoothing)

Description

This Filter applies hierarchical smoothing to a triangle surface mesh representing polycrystalline grain boundary networks. Unlike simple Laplacian smoothing, this algorithm respects the topological hierarchy of the mesh:

1. Quad points (node type 4 or 14) are held fixed as they represent the intersection of four or more grains.

2. Triple lines (edges between quad points along triple junctions) are smoothed as 1D curves with the quad points as fixed endpoints.

3. Interior boundary surfaces are smoothed with the already-smoothed triple lines held fixed, solving a Dirichlet boundary value problem using a conjugate gradient solver.

This hierarchical approach preserves the topology of the grain boundary network while producing smooth surfaces. The smoothing parameter is optimized via interval bisection to balance smoothness against displacement from the original mesh.

Nodes that are displaced beyond the error threshold (a multiple of a reference edge length) are rejected and reset to their original positions.

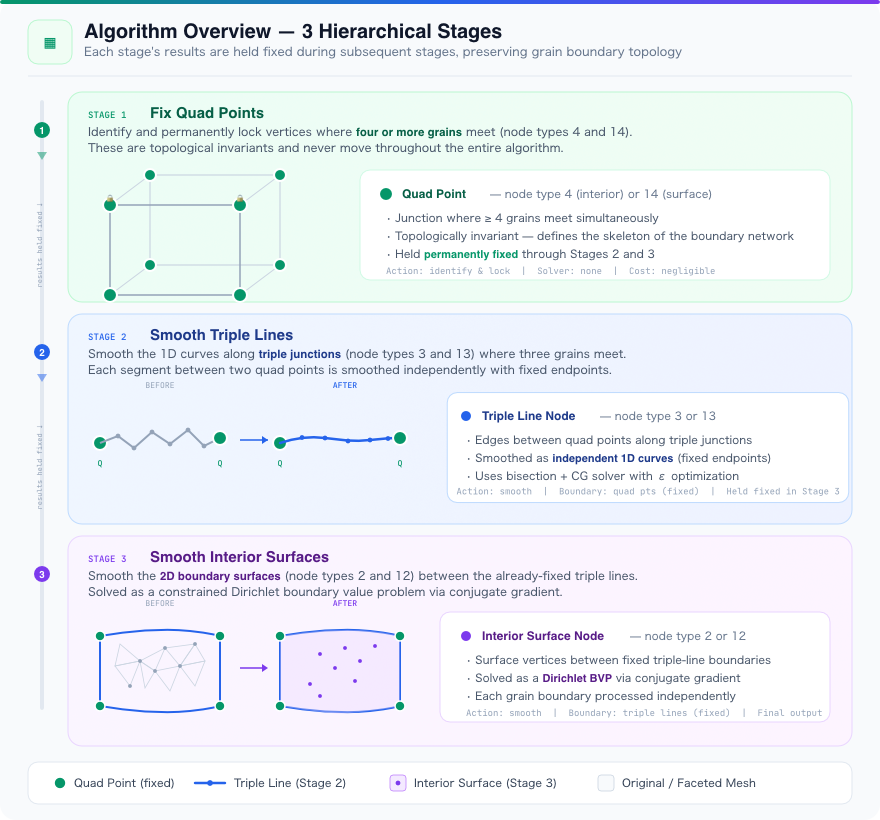

Algorithm Overview

The filter applies smoothing in three hierarchical stages. Each stage’s output is held fixed during subsequent stages, preserving the topology of the grain boundary network.

The three stages are:

1. Fix Quad Points — Vertices where four or more grains meet (node types 4/14) are identified and permanently locked. These topological invariants anchor the entire boundary network.

2. Smooth Triple Lines — The 1D curves along triple junctions (node types 3/13) are smoothed as independent curves between fixed quad-point endpoints, using bisection-optimized conjugate gradient.

3. Smooth Interior Surfaces — The 2D boundary surfaces (node types 2/12) are smoothed with the triple lines held fixed, solving a constrained Dirichlet boundary value problem via conjugate gradient.

Parameter Details

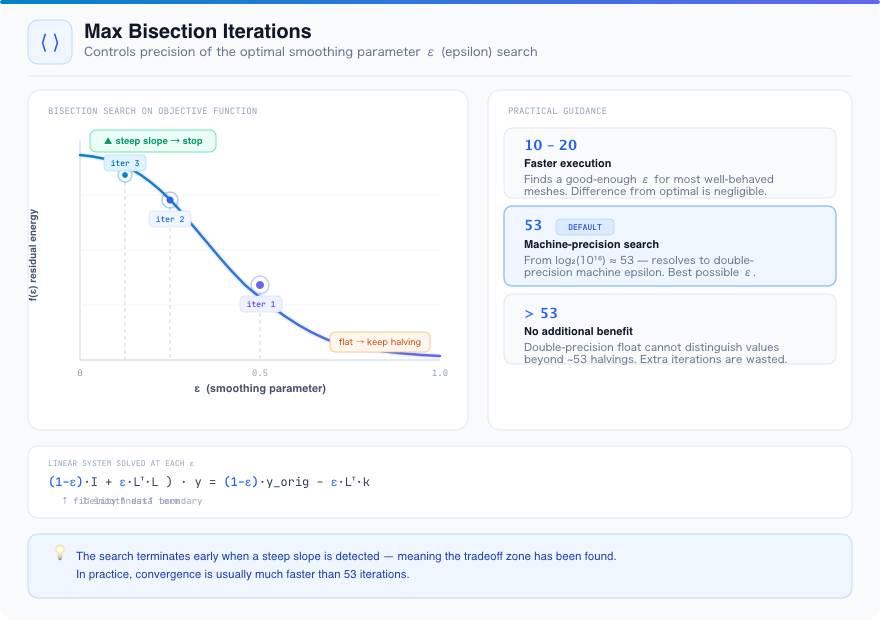

Max Bisection Iterations

At each stage, the algorithm must find the optimal smoothing parameter epsilon that balances two competing goals: (1) keeping vertices close to their original positions, and (2) minimizing surface curvature. This is framed as solving a weighted linear system:

  ((1 - epsilon) * I  +  epsilon * L^T * L) * y  =  (1 - epsilon) * y_original  -  epsilon * L^T * k
   \_____________/        \_______________/          \________________________/     \______________/
     identity term         smoothness term              data fidelity term           boundary term

where I is the identity matrix, L is the reduced graph Laplacian, y_original is the original vertex positions, and k encodes the fixed boundary constraints.

• When epsilon = 0: vertices stay at their original positions (no smoothing).

• When epsilon = 1: vertices are fully smoothed to minimize curvature (maximum smoothing).

The algorithm uses interval bisection to find the optimal epsilon:

1. Start at epsilon = 0.5.

2. Compute a numerical derivative of the objective function (the total Laplacian residual energy).

3. If the derivative is near zero (flat region), the current epsilon is not in the active tradeoff zone. Halve epsilon and try again.

4. Repeat until either a significant slope is found or the iteration limit is reached.

The Max Bisection Iterations parameter controls how many halvings are attempted. The default value of 53 comes from log2(10^16) ~ 53, which is the number of bisection steps needed to resolve a double-precision floating point value to machine epsilon. In practice, the search often converges in far fewer iterations because it terminates early once a significant slope is detected.

Practical guidance:

Value	Effect
10-20	Faster execution per boundary. May find a slightly sub-optimal smoothing parameter, but the difference is usually negligible for well-behaved meshes.
53 (default)	Machine-precision search. Guarantees the best possible smoothing parameter for each boundary.
>53	No additional benefit beyond the default since double-precision arithmetic cannot distinguish values at this resolution.

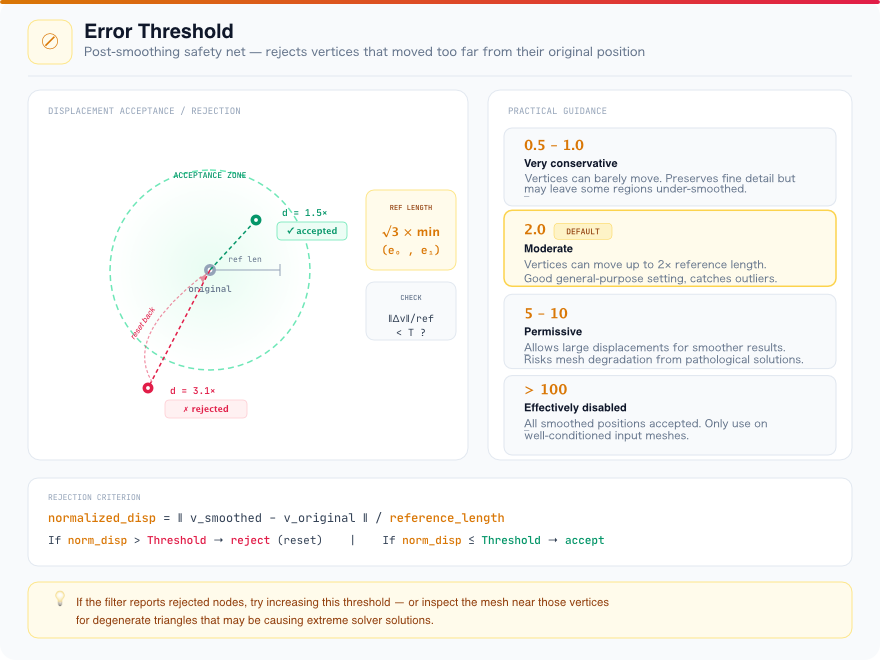

Error Threshold

After all boundaries have been smoothed, the algorithm performs a post-processing validation step. Each vertex’s displacement from its original position is compared against a reference length derived from the mesh:

  Reference length = sqrt(3) * min(edge0_length, edge1_length)

where the edge lengths come from the first triangle in the mesh. This approximates the characteristic size scale of one mesh element (the height of an equilateral triangle with side length equal to the shortest edge).

Each vertex’s displacement is normalized by this reference length:

  normalized_displacement = || vertex_smoothed - vertex_original || / reference_length

Any vertex whose normalized displacement exceeds the Error Threshold is rejected: its position is reset to the original (unsmoothed) value, and it is marked as “not smoothed.”

This safety mechanism prevents the smoothing from producing mesh artifacts in regions where the solver produces an extreme solution (e.g., highly elongated triangles, unusual boundary conditions, or degenerate configurations).

Practical guidance:

Value	Effect
0.5 - 1.0	Very conservative. Vertices cannot move more than 0.5-1.0 reference lengths. Produces results closer to the original mesh but may leave some regions under-smoothed. Good for preserving fine detail.
2.0 (default)	Moderate. Allows vertices to move up to 2x the reference length. Good general-purpose setting that provides effective smoothing while catching genuine outliers.
5.0 - 10.0	Permissive. Allows large displacements. Produces smoother results but risks mesh quality degradation if a boundary solver produces a pathological solution.
Very large (>100)	Effectively disables rejection. All smoothed positions are accepted regardless of displacement. Only use if you are confident the input mesh is well-conditioned.

Parameters

Name	Type	Description	Default
Max Bisection Iterations	Int32	Maximum number of bisection iterations for smoothing parameter optimization (see above)	53
Error Threshold	Float64	Displacement rejection threshold as a multiple of the reference edge length (see above)	2.0
Triangle Geometry	Geometry Selection	The triangle geometry to smooth	-
Node Type	Array Selection (Int8, 1-comp)	Array specifying node type (2=interior, 3=triple, 4=quad; +10 for surface)	-
Face Labels	Array Selection (Int32, 2-comp)	Array specifying grain IDs on either side of each face	-

Notes

• This filter modifies the vertex coordinates of the input Triangle Geometry in place.

• The algorithm processes each grain boundary independently. Progress messages indicate which boundary is being processed.

• Volume surface nodes (types 12, 13, 14) are treated identically to their interior counterparts (types 2, 3, 4) for the purpose of the smoothing hierarchy.

• The conjugate gradient solver handles its own internal convergence; the max iterations parameter controls only the bisection search for the optimal smoothing parameter, not the CG solver iterations.

• If the filter reports rejected nodes, consider increasing the Error Threshold or inspecting the input mesh for degenerate triangles near the rejected vertices.

Input Parameter(s)

Parameter Name	Parameter Type	Parameter Notes	Description
Max Bisection Iterations	Scalar Value	Int32	Maximum number of bisection iterations for the smoothing parameter optimization. Higher values give more precise results.
Error Threshold	Scalar Value	Float64	Displacement rejection threshold as a multiple of the minimum edge length. Nodes displaced beyond this threshold are reset to their original positions.

Input Triangle Geometry

Parameter Name	Parameter Type	Parameter Notes	Description
Triangle Geometry	Geometry Selection	Triangle	The complete path to the triangle geometry for which to apply hierarchical smoothing

Input Cell Data

Parameter Name	Parameter Type	Parameter Notes	Description
Node Type	Array Selection	Allowed Types: int8 Comp. Shape: 1	The complete path to the array specifying the type of node in the Geometry
Face Labels	Array Selection	Allowed Types: int32 Comp. Shape: 2	The complete path to the array specifying the grain IDs on either side of each face

Reference

• S. Maddali, “HierarchicalSmooth” - Topology-aware smoothing for polycrystalline grain boundary networks. Carnegie Mellon University, 2016-2018.

• S. Maddali, S. Ta’asan, R. M. Suter, Topology-faithful nonparametric estimation and tracking of bulk interface networks, Computational Materials Science 125, 328-340 (2016).
