10.71. Create Surface Mesh (M3C Multi-Material Marching Cubes)
Group (Subgroup)
Surface Meshing (Generation)
Description
This Filter creates a watertight, conformal triangle surface mesh from a segmented volume using the Multi-Material Marching Cubes (M3C) algorithm. The input is an Image Geometry together with a Cell Feature Ids Data Array that assigns every Voxel to a Feature (for example a grain). The output is a Triangle Geometry whose faces tile every internal Feature–Feature interface as well as the outer boundary of the volume.
Classic marching cubes extracts the surface between exactly two regions. A segmented microstructure, however, has many Feature labels that meet along triple lines and at quadruple points. M3C generalizes marching cubes to the multi-material case: mesh vertices are placed on the Cell edges and faces where the Feature Id changes, and a multi-material case table drives how those points are connected into triangles so that every shared interface is represented by a single, coherent set of triangles (no cracks and no duplicated surfaces).
The algorithm produces the same output data model as the Create Surface Mesh (QuickMesh) and Surface Nets Filters:
A Triangle Geometry (shared vertex list + shared triangle list).
Face Labels — a two-component
int32Data Array giving the two Feature Ids on either side of each triangle. The smaller of the two ids is placed in component 0 (matching Surface Nets and QuickMesh). Faces on the outer boundary of the volume use a value of -1 on their exterior side (which therefore sorts into component 0).Node Types — a one-component
int8Data Array classifying each vertex by how many Features meet there (see the table below).
M3C is a primal method (vertices lie on Cell edges), whereas Surface Nets is a dual method (one relaxed vertex per boundary Cell). The two produce different tessellations of the same interfaces; M3C is retained because its primal, case-table topology is preferred for some downstream modeling and simulation workflows.
Node Types
The Node Types array uses the same convention as the Surface Nets Filter. Interior values
denote how many Features meet at the vertex, capped at 4; the exterior (volume-boundary)
variants add 10. The region outside the volume counts as one of those owners, which is why an
ordinary vertex on the wall between the exterior and a single Feature is 12 — two owners, one
of them the exterior — rather than 11.
Node Type |
Meaning |
|---|---|
2 |
On a two-Feature interface |
3 |
On a triple line (three Features) |
4 |
At a quadruple point (four or more Features) |
12 / 13 / 14 |
The 2 / 3 / 4 variants lying on the outer volume boundary |
Attribute Array Transfer
Any selected Cell or Feature Data Arrays can be transferred onto the created triangle faces. Because every face borders two Features, each transferred array is created on the face Attribute Matrix with its component count doubled — the first half of the components holds the value for the Feature on side 0 of the face and the second half holds the value for side 1.
Winding Consistency
M3C assigns each triangle’s winding (and therefore its normal direction) using a local, per-triangle heuristic, which does not guarantee globally consistent normals across the whole mesh. Enable Attempt to Make Windings Consistent to run a post-processing pass that makes the triangle winding consistent across connected faces. This is recommended for meshes that will be used for normal- or curvature-dependent analysis.
Bounding Box Skin
The six outer walls of the Image Geometry’s bounding box are not real interfaces — they are
artifacts of where the volume was cropped. This option controls whether triangles are generated to
cover them. Wall faces carry a Face Label of -1 on their exterior side.
Off (default)
All six walls are covered. Note that wherever an internal Feature-Feature boundary meets a wall, three faces share that edge — the internal boundary plus the two wall faces on either side of it — a non-manifold T-junction inherent to including the full skin.
Background-Backed Walls Only
A wall face is omitted where the Voxel behind it is background (Feature Id 0), that is,
where its Face Labels would be {-1, 0}. Wall faces that cap a real Feature are still
generated, because that cut plane is the only possible closure for a Feature flush with the box;
a cylinder sitting flush with the box floor therefore comes out as a closed surface with no
surrounding box.
Because the test is per face rather than per vertex, no triangles are lost along the rim where an internal boundary meets a wall, and dropping the background-backed face on such an edge leaves two faces there rather than three, which is manifold. In the configurations this Filter’s tests exercise — a cylinder Feature flush with a wall, and a Feature occupying a box corner where three omitted wall planes meet — this mode therefore yields a watertight mesh where Off does not. That is not a universal guarantee for arbitrary input.
Two inputs leave this mode nothing useful to do. Both are reported as warnings, not errors:
-56342— no bounding-box wall Voxel is background, so no face is omitted and the mode has no effect. This covers a fully-indexed volume as well as one whose background is entirely enclosed as interior porosity; the warning concerns only the walls, not whether background exists elsewhere in the volume.-56340— every Voxel is background, so every face is omitted and the Triangle Geometry is created with zero faces. Unlike Create Surface Mesh (QuickMesh) and Create Surface Mesh (Surface Nets), the vertex count is not zero for M3C (see the note below), so the warning reports the remaining vertex count. The input is legal — it holds no internal interface and no Feature to cap — so this is success.
Feature Id Validation
Independently of the Bounding Box Skin setting, this Filter always rejects a Feature
Ids array that contains a negative value or a value equal to INT32_MAX, because both collide
with sentinel values M3C’s algorithm uses internally to represent ghost cells and the outside of
the volume. A Feature Id must therefore be in the range 0 to INT32_MAX - 1. A rejected
value produces an error (code -56343) naming the offending value, its tuple index, and the
array’s Data Path. This is a mitigation for the underlying sentinel-collision design (tracked
as issue #1705), not a fix for it.
Note: M3C’s candidate-node generation always leaves a handful of node entries near the volume boundary that no triangle references. These orphan vertices are present in stock M3C output regardless of the Bounding Box Skin setting (tracked as issue #1706), and Background-Backed Walls Only does not touch them — it clears only the vertices its own pruning orphans. This is why an all-background volume yields zero faces but a non-zero vertex count.
Notes and Limitations
The volume is automatically wrapped in a temporary ghost layer so that Features touching the edge of the volume are meshed correctly; no manual padding is required. The ghost layer is internal only: the generated mesh lies entirely within the bounds of the input Image Geometry, and its exterior surface sits exactly on the volume boundary.
Changed in this release: earlier versions placed the mesh half a Cell off from the input volume and additionally emitted surface along the internal seams of the ghost layer, so roughly half of every mesh fell outside the volume bounds. Both are fixed. Meshes produced by this Filter now align with the input volume and with the other surface meshing Filters. Surface meshes regenerated after this change will differ from ones saved previously.
Feature Id values of 0 are handled internally and restored on output.
Only an Image Geometry is accepted as input: the M3C node coordinates assume uniform Cell spacing, so a RectGrid Geometry cannot be meshed correctly by this Filter.
The mesh is generated using multiple threads. For a given input the result is deterministic and reproducible — it does not depend on the number of threads.
Memory: the volume is swept one Z slice at a time, so the per-Cell working scratch is proportional to a slice (roughly the square of the in-plane dimension), not to the whole volume. Peak memory is therefore dominated by the size of the generated mesh itself (the number of triangles and vertices) rather than by the input dimensions; meshes with a very large number of small Features produce more triangles and use more memory.
This implementation ports the in-memory algorithm of the legacy DREAM.3D M3CEntireVolume Filter
(it is the functional replacement for the legacy M3CSliceBySlice Filter), originally
contributed by Dr. Sukbin Lee (Carnegie Mellon University), based on the algorithm of
Wu & Sullivan, “Multiple material marching cubes algorithm,” International Journal for Numerical
Methods in Engineering, 58(2):189–207, 2003.

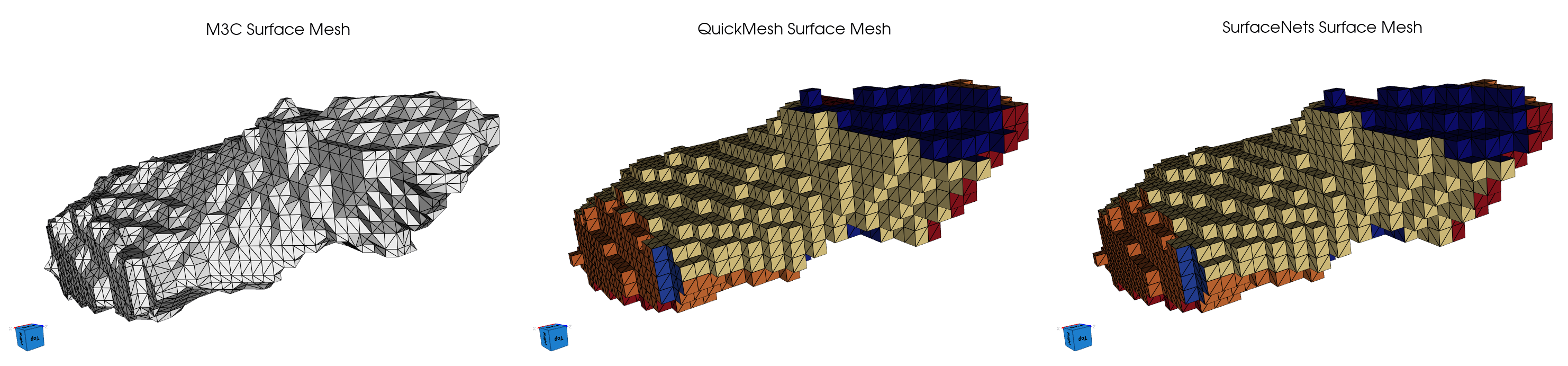

Comparison of Surface Meshing Filters
DREAM3D-NX provides three Filters that convert a segmented grid into a multi-material triangle surface mesh. All three produce the same output data model (a Triangle Geometry with Face Labels and Node Types), so they are interchangeable inputs to downstream mesh Filters; they differ in how the triangles are generated and therefore in mesh smoothness, triangle count, and performance.
Aspect |
Create Surface Mesh (QuickMesh) |
Create Surface Mesh (Surface Nets) |
Create Surface Mesh (M3C) |
|---|---|---|---|
Algorithm |
Voxel-face (“staircase”) |
Dual (SurfaceNets) |
Primal multi-material marching cubes |
Vertex placement |
Voxel corners |
One relaxed vertex per boundary Cell |
On Cell edges/faces |
Surface quality |
Blocky / stair-stepped |
Smooth, sharp edges preserved |
Faceted (marching-cubes) |
Built-in smoothing |
No (apply Laplacian Smoothing afterward) |
Yes, optional and accuracy-controlled |
No (apply Laplacian Smoothing afterward) |
Relative triangle count |
Highest |
Lowest |
Moderate to high (configuration dependent) |
Multi-material junctions |
Yes |
Native |
Yes (via case table) |
Performance |
Fastest |
Fast (parallelized) |
Moderate (multithreaded) |
Status |
Deprecated |
Recommended default |
Specialized / legacy-compatible |
Guidance: Surface Nets is the recommended default for most workflows — it yields the smoothest mesh with the fewest triangles and preserves sharp boundaries. Use M3C when a primal, marching-cubes case-table topology is required for a specific downstream modeling or simulation workflow. QuickMesh is retained for backward compatibility.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Attempt to Make Windings Consistent |
Bool |
If true, runs a winding-consistency repair pass after meshing. The M3C per-triangle winding heuristic does not guarantee globally consistent normals, so this is recommended. |
|
Bounding Box Skin |
Choices |
Controls how triangles are generated on the outer wall of the bounding box. ‘Off’ generates the wall as normal. ‘Background-Backed Walls Only’ omits wall faces where the wall borders the background (Feature Id 0); faces where the wall caps a real Feature ARE still generated, so Features flush with the box stay closed. |
Input Data Objects
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Image Geometry |
Geometry Selection |
Image |
The complete path to the Image Geometry from which to create a Triangle Geometry |
Cell Feature Ids |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
Specifies to which feature each cell belongs. |
Cell Attribute Arrays to Transfer |
MultiArraySelection |
The Cell Attribute Arrays to transfer to the created Triangle Geometry (one value per side of each face) |
Input Feature Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Feature Attribute Arrays to Transfer |
MultiArraySelection |
The Feature Attribute Arrays to transfer to the created Triangle Geometry (one value per side of each face) |
Output Triangle Geometry
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Created Triangle Geometry |
DataGroupCreation |
The name of the created Triangle Geometry |
Output Vertex Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Vertex Data [AttributeMatrix] |
DataObjectName |
The name of the AttributeMatrix where the Vertex Data of the Triangle Geometry will be created |
|
Node Type |
DataObjectName |
The name of the Array specifying the type of node in the Triangle Geometry |
Output Face Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Face Data [AttributeMatrix] |
DataObjectName |
The name of the AttributeMatrix where the Face Data of the Triangle Geometry will be created |
|
Face Labels |
DataObjectName |
The name of the Array specifying which Features are on either side of each Face in the Triangle Geometry |
Example Pipelines
Pipelines/SimplnxCore/M3C_Demo.d3dpipeline
License & Copyright
Please see the description file distributed with this Plugin
