7.0.0-Release

After 2.5 years of development, over 200K lines of code, 14 release candidates, BlueQuartz Software is proud to announce the official version 7.0.0 of DREAM3D-NX. This crucial update adds a multitude of features and enhancements to the venerable DREAM.3D application including built in 3D visualization for the first time.

  • Release Date: NOV 11 2024

Known Issues

  • Synthetic Building Filters are not yet implemented
  • Long visualization operations can lock up the GUI. Please be patient for those operations to end.

What's New in DREAM3D-NX

Key updates

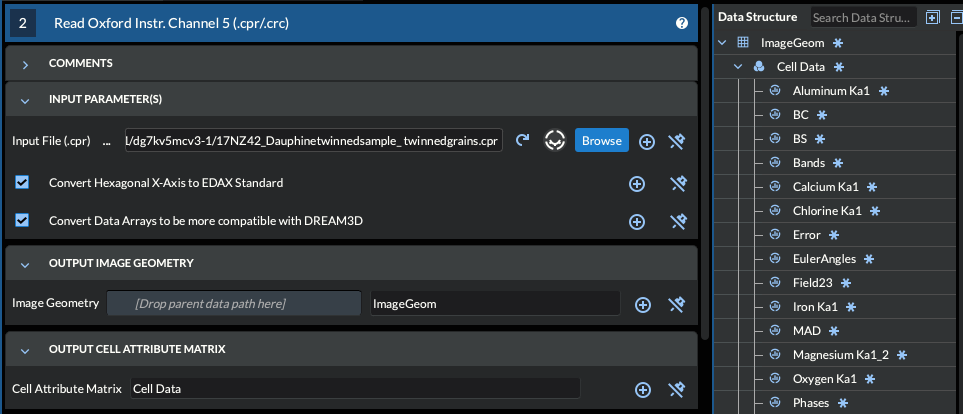

  • Filter: Oxford Channel 5 Binary File Reader

    Oxford Channel 5 Binary File Reader

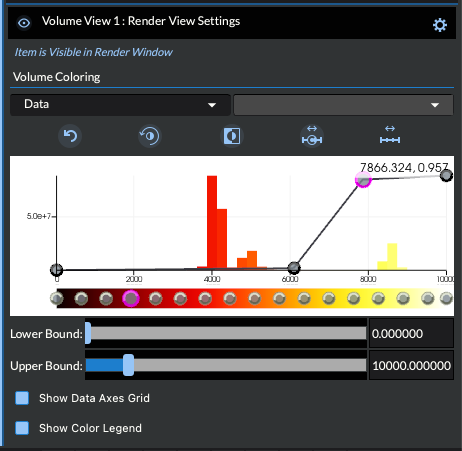

  • Improve volume view controls

    Improve volume view controls

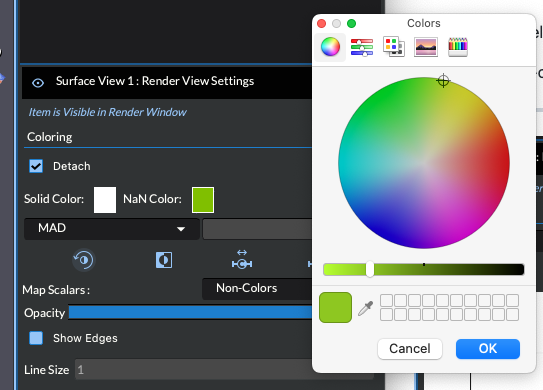

  • Control Color of NaN Values

    Control Color of NaN Values

Other Enhancements and Fixes

In the below tables are summarized git logs from the commits since the last release. Each line should have a short code at the start of the line indicate a general area that the commit falls under. Also included are the Git commit hash. These can be fully reviewed at:

https://www.github.com/bluequartzsoftware/simplnx

https://www.github.com/bluequartzsoftware/DREAM3DNX

DREAM3D-NX

  • ENH: Improve volume view controls (#751) [5fc485ff]
  • DOC: Add DREAM3D File specification to the documentation (#746) [01f4c39e]
  • ENH: Make Visualization Preset Options More Discoverable (#747) [ac5350db]
  • ENH/BUG: Add option to change NaN color in 3D vis (#744) [1a457fe3]
  • BUG: Disable left mouse button actions in 2D interactive mode (#748) [0b2c1444]
  • ENH: Remove unnecessary warning messages (#745) [378e4d75]
  • PY: Add python path to the Visual Studio Debugger [ca4a4ad7]
  • BUG: Remove debugging code [8cc70e47]
  • STYLE: Adjust QLineEdit disabled colors (#742) [25f14ab9]
  • Add minimum height to CSV Reader's preview window. [36d7f6b5]
  • BUG: Fix 2D Charting reload crashes. (#741) [73b91520]
  • ENH: Quality of life updates (#740) [0765175a]
  • COMP: Update clang format standard to C++20 (#737) [08909b17]
  • ENH: Add new macro for turning on/off charting separately from 3D vis (#739) [bb09cffe]
  • BUG: Fix charting widget crash from bad NXFilter & NXDataStructureModel pointers (#738) [9769d5c7]
  • COMP: Add missing visualization macro checks for charting [3c8d8521]
  • ENH: Add basic 2D charting feature (#720) [25bab121]
  • VER: Update to RC15 [d752fc44]

SIMPLNX

  • REL: Update version to 1.5.0 [1c957f746]
  • FILT: Add Oxford Channel 5 Binary file reader [725b35617]
  • BUG: Now catch std::filesystem exceptions in parameters (#1127) [dade5e9b3]
  • DOC: Document the DREAM3D file specification (#1116) [e431b770d]
  • API: EbsdLib-1.0.34 update. (#1122) [382861a2f]
  • BUG: ReadDEFORMFileFilter-Set SharedQuadList names to proper defaults (#1120) [439c08cf9]
  • ENH: Fix 3rd Party .dream3d file import and other compiler warnings & issues (#1108) [79cb89d98]
  • LICENSE: Change the distribution license to AGPLv3 (#1119) [9bee9ce17]
  • ENH: Compute NeighborList Stats Updates (#1118) [3e23b694f]
  • ENH: Map Point Cloud to Regular Grid Filter Modernization (#1109) [5cf455d11]
  • BUG: WriteASCIIDataFilter-Fix bug writing multi-component arrays to multiple files (#1114) [21b8e797f]
  • ENH: GitHub is removing MacOS-12 Support from their Actions. Update to MacOS-13 (#1115) [3d3667a10]
  • ENH: Changes to decrease compile time (#1105) [d11d251c0]
  • FILT: Add 'Read GrainMapper3D' filter (#1107) [7b6d091df]
  • ENH: ITKImportImageStack Z Axis Resampling and Improvements (#1104) [68703bfc7]
  • ENH: Iterative Closest Point Filter Changed to 1 Second Update Scheme (#1106) [cd6c44e5b]
