New Feature Gallery¶

Many Filters to Process Data¶

Over 250 Filters that can be used to process your data. Over 75 filters dedicated to image processing.

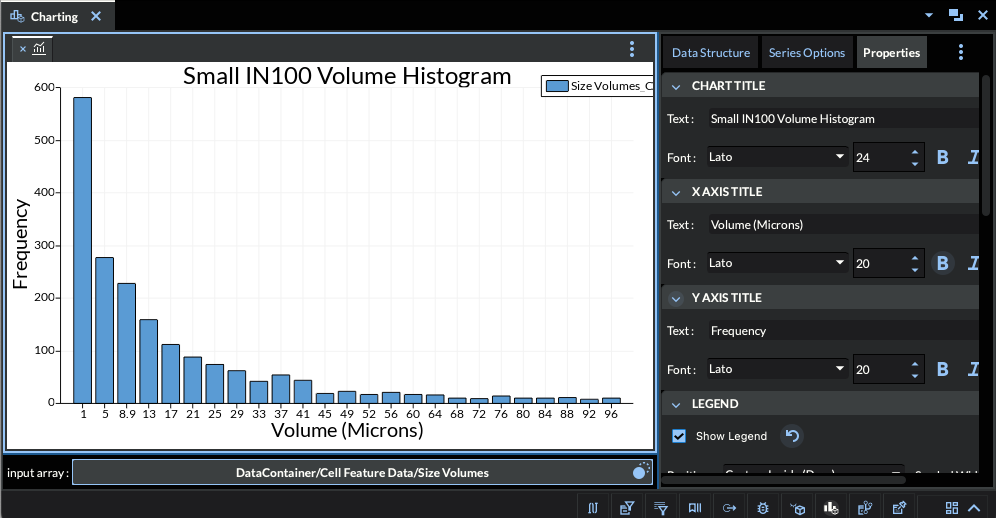

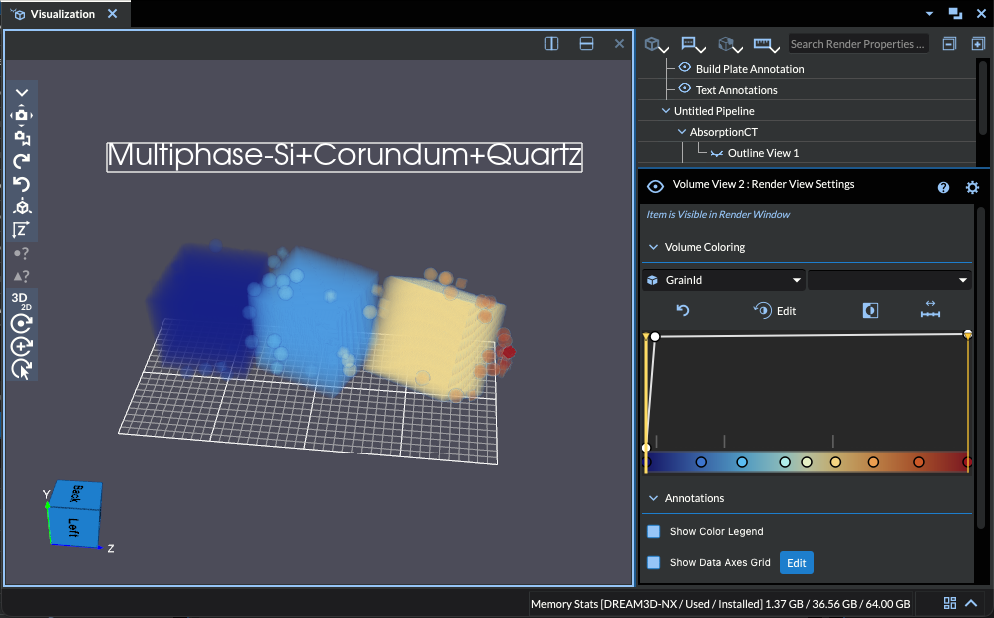

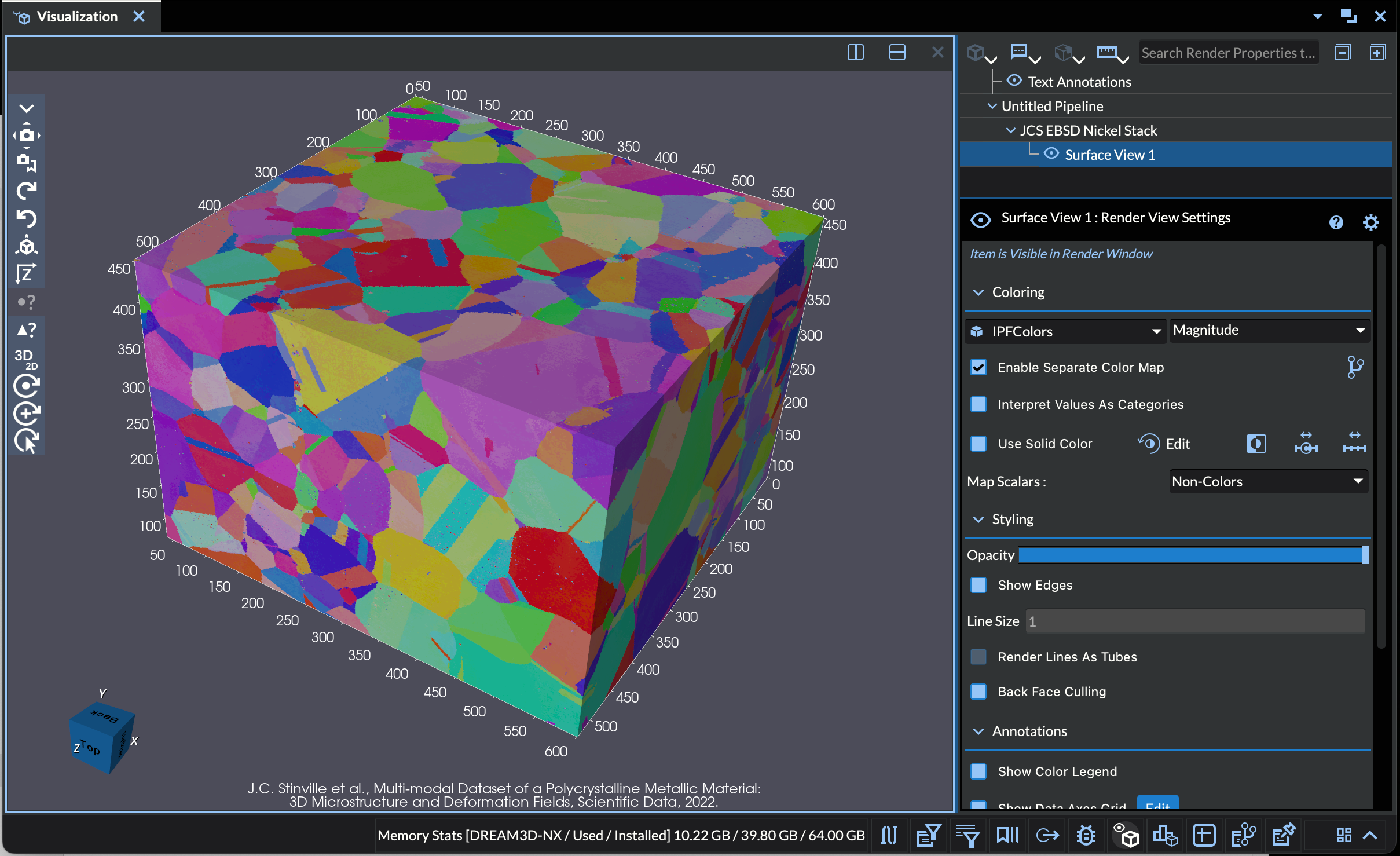

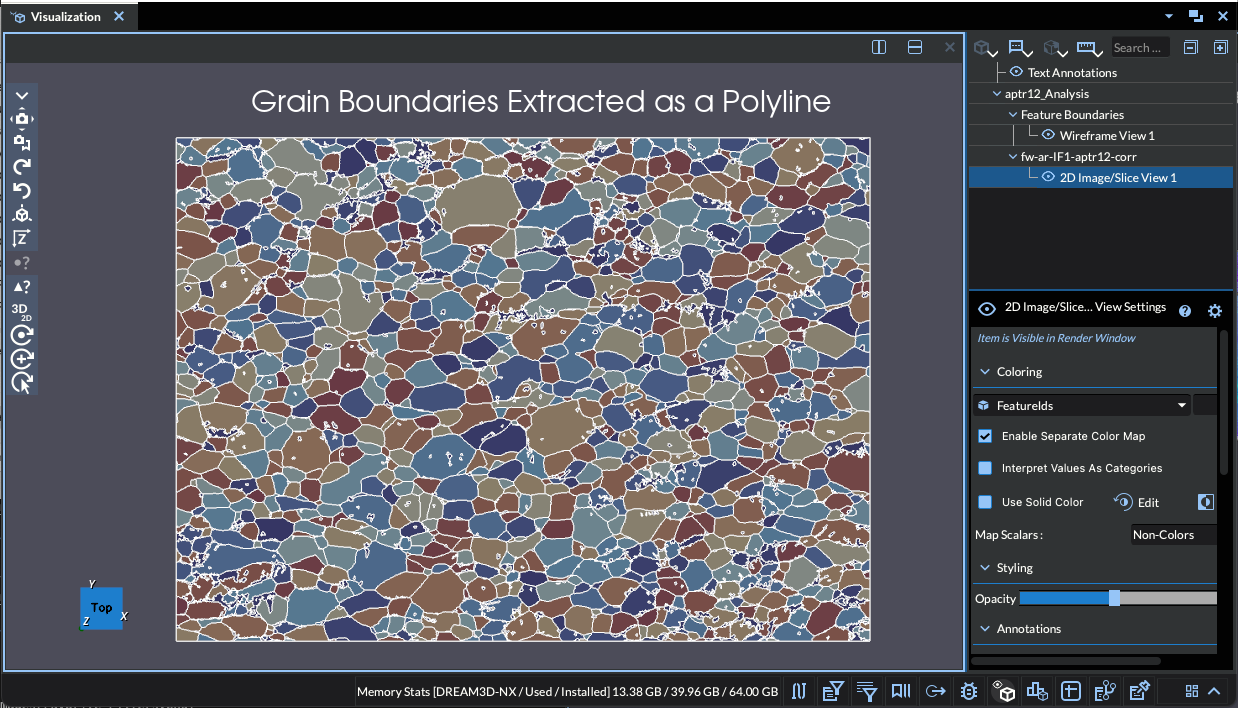

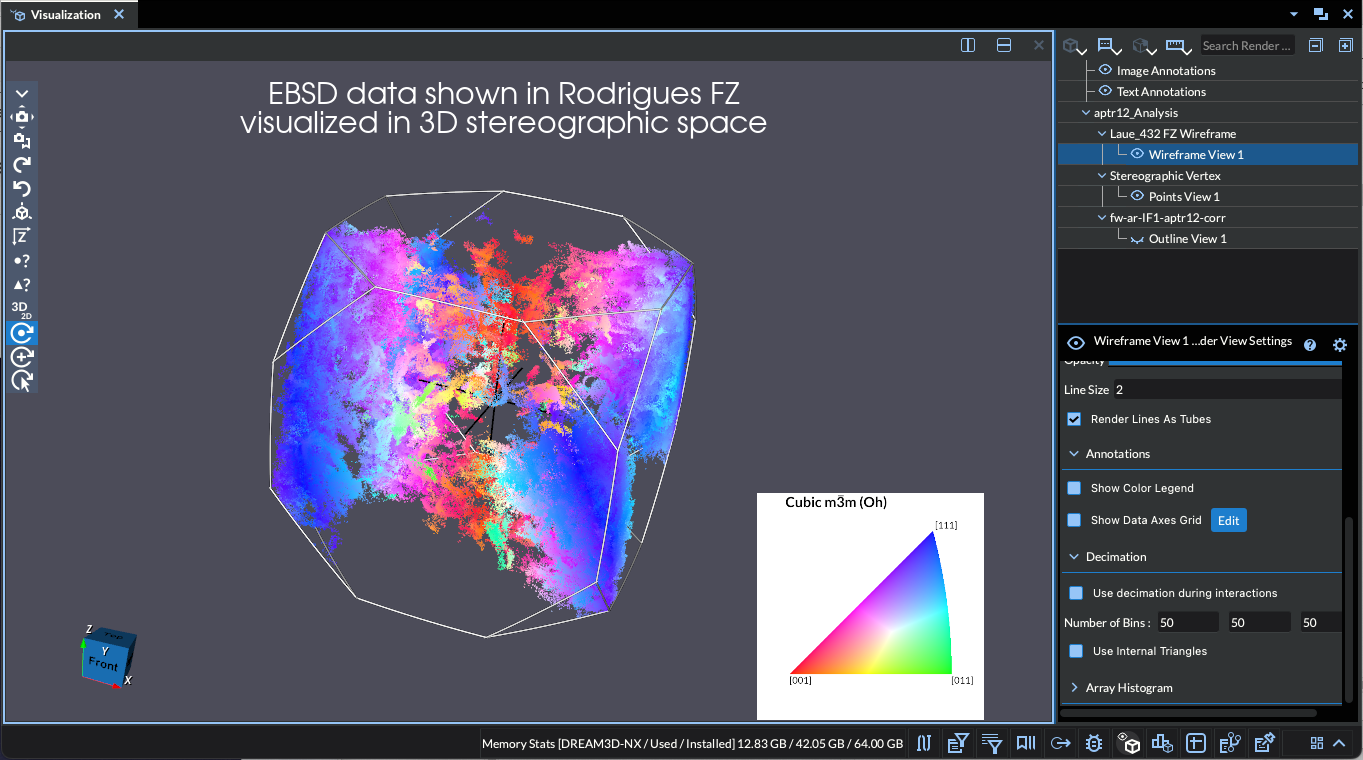

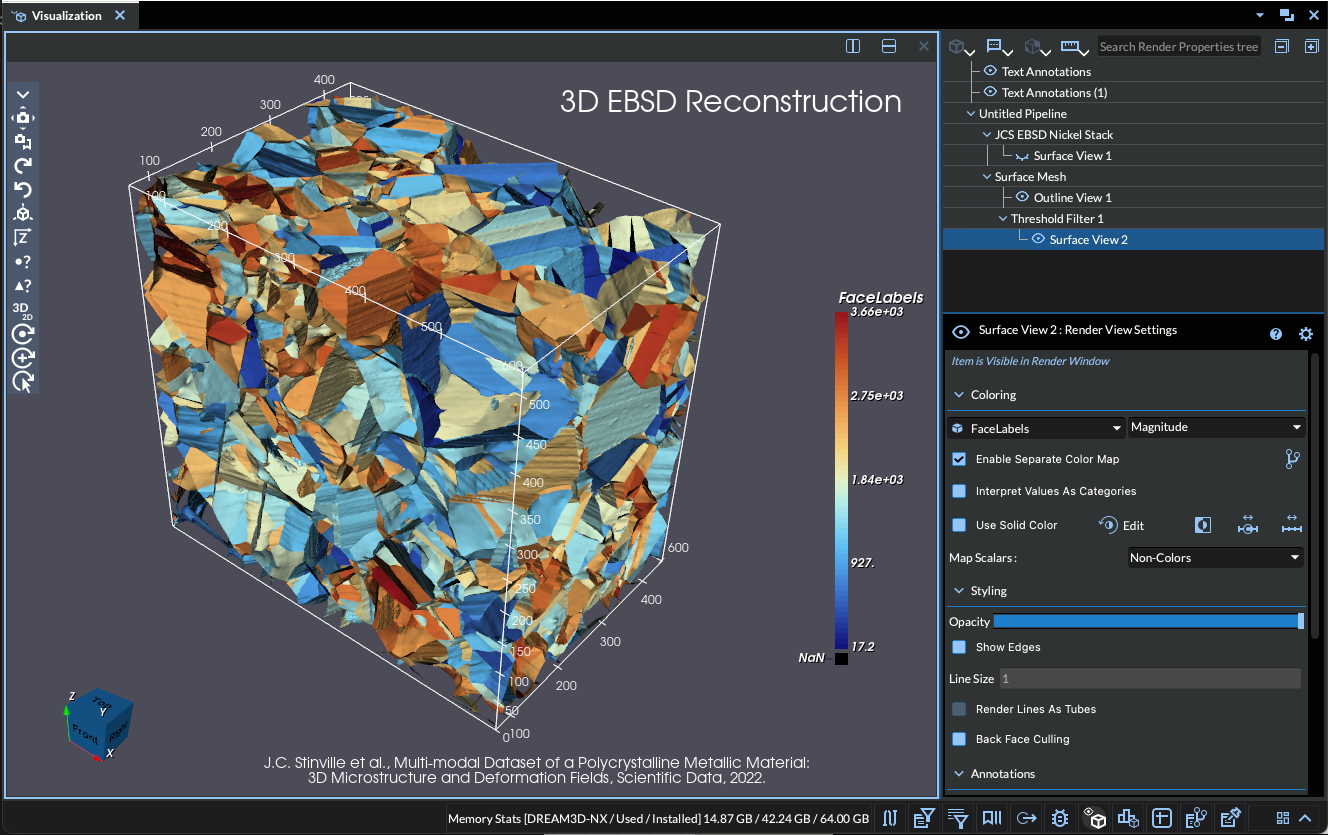

Integrated Visualization now available¶

Filter Comments¶

Every filter has a comment area that can be used to document the filter's use or why certain parameter values were selected.

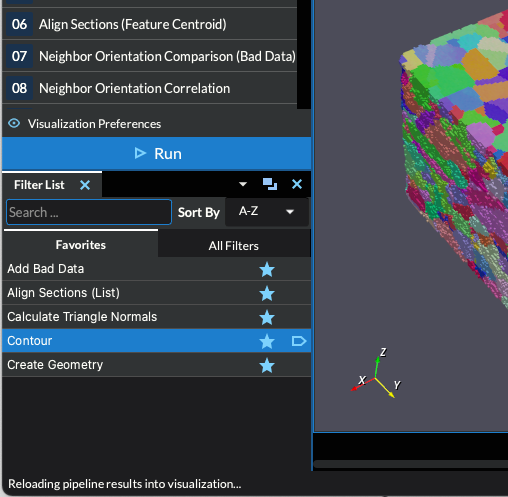

Favorite Filters¶

Filters that are used often can be added to a favorites list for quick access

Pinned Parameters¶

For longer pipelines where the user wants to adjust specific parameters they can be pinned and will show up in the separate widget (in addition to their original filter). This can be useful when iterating on a pipeline's parameters. In the screen shot below the "Data Thresholds" parameter from the "Multi-Threshold Objects" filter has been pinned. This allows the user to easily access the values and quickly rerun the pipeline with those new parameters.

Filter Tags¶

Filters now have additional meta-data that is used when searching for a filter. Filter tags can be edited by the user and the tags are saved across sessions.

The DataStructure view can be filtered by typing in the search field.

Before Searching	After Searching

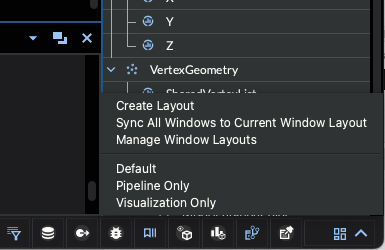

User Defined Window Layouts¶

The user can define specific window layouts based on their needs. DREAM3D-NX provides a few basic layouts, but the user can make as many others as needed.
