7.2.2-Release

BlueQuartz Software is proud to release version 7.2.2 of DREAM3D-NX. This smaller update contains a few key bug fixes and introduces a few small but nice features.

  • Release Date: SEPTEMBER 28 2025

What's New and Fixed in DREAM3D-NX Version 7.2.2

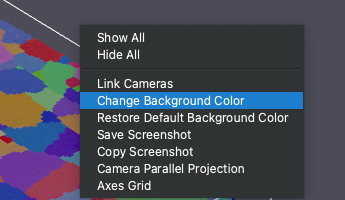

  • Change Render View Background Color


    2D Charting Feature

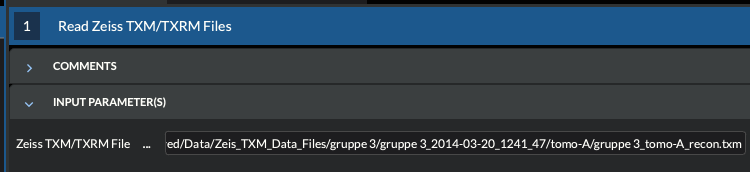

  • Read Zeiss TXM CT Files


    Build Plate Annotation

Other Important Enhancements and Bug fixes

  • Users can now change the background color of the render window
  • Add a new filter "Read Zeiss TXM" that can read .txm files
  • Add a new filter "Combine Transformation Matrices"
  • Rewrote the DBSCAN filter realizing an order of magnitude speed up
  • Several bug fixes to the Apply Transformation to Geometry filter
  • BUG: Fixes crash when Reading Legacy DREAM.3D file containing Stats data (#1391) [2025-08-07]

Known Issues

  • Synthetic Building Filters are not yet implemented
  • Long visualization operations can lock up the GUI. Please be patient for those operations to end.
  • Compute Feature Centroids will not respect periodic boundaries in a model
  • The Anaconda version will not save your GUI window layout correctly. The workaround is to create a layout to your liking and save it as a preset.
  • Computing Volumes from Triangle Features will not work correctly unless all triangle normals are consistent and the surface mesh is watertight.

Complete List of updates

In the below tables are summarized git logs from the commits since the last release. Each line should have a short code at the start of the line indicate a general area that the commit falls under. Also included are the Git commit hash. These can be fully reviewed at:

https://www.github.com/bluequartzsoftware/simplnx

https://www.github.com/bluequartzsoftware/DREAM3DNX

DREAM3D-NX

  • REL: Official 7.2.2 release [2025-09-25]
  • ENH: Allow user to change background render window color (#978) [2025-09-25]
  • BUG: Add temporary fix for bar charts to handle vtk bug with very large numbers on bin ranges for bar charts (#979) [2025-09-25]
  • STY: Use proper include syntax for EbsdLib since it is an external library (#974) [2025-09-24]
  • ENH: Allow user to double-click select for dropped file dialog. (#977) [2025-09-24]
  • BUG: Fix charting to only import the data arrays needed (#970) [2025-09-23]
  • CI: Update CI Build Machines to Vtk 9.4.2 and Qt 6.8.3 (#976) [2025-09-23]
  • BUG: Fix capitalization on default color table from FAST to Fast (#972) [2025-09-19]
  • ENH: Move stylesheet editor to Edit menu (#968) [2025-09-17]
  • STY: Adjust contrast of the Radio Buttons for Dark and Light mode (#969) [2025-09-17]
  • BUG: Fix restoring pipelines in certain cases (#966) [2025-09-15]
  • BUG: Fix importing DREAM3D file via drag & drop to import preflight data structure initially (#965) [2025-09-10]
  • BUG: Fix parsing of simplnx number parameter value for comparison purposes (#964) [2025-09-08]
  • BUG: Fix build plate tab order (#962) [2025-08-27]
  • OPT: Use ColorTableUtilities API updates to move away from parsing JSON (#958) [2025-08-27]
  • ENH: Add Linux lower case shell script to launch dream3dnx in conda environments (#956) [2025-08-21]
  • ENH: Changes the default colormap of the render window to "Fast" (#943) [2025-08-21]
  • ENH: Memory and Speed optimizations for Preflight with ReadDREAM3DFile filter and parameter (#957) [2025-08-21]
  • ENH: Show Python Filter name in the Filter Parameters view for Anaconda builds (#955) [2025-08-21]
  • BUG: Leave output directory the same when user cancels from file dialog (#959) [2025-08-21]
  • BUG: Fix creation of vis presets (#949) [2025-08-18]
  • BUG: Handle empty string inputs for build plate annotation grid spacing (#948) [2025-08-18]
  • COMP: Update usage of 'ImportDataStructureFromFile' to better reflect intent (#942) [2025-08-18]
  • BUG: Fixed VTK minimum version check to properly fail if not met (#952) [2025-08-18]
  • BUG: MacOS default menu now loads states properly. (#945) [2025-08-14]
  • ENH: Update various NX packaging and conda build variables (#939) [2025-08-07]
  • ENH: Update state files to allow linking of nx and visualization pipelines for reloading (#934) [2025-08-06]
  • BUG: Fix indexed LUT for multicomponent arrays (#938) [2025-08-04]
  • STYLE: Fix styling for label in clip filter [2025-07-31]
  • VERS: Update EbsdLib to v1.0.39 for conda builds (#936) [2025-07-30]
  • BUG: 0D, 1D, and 2D geometry now create vtkPolyData instead of vtkUnstructuredGrid (#935) [2025-07-30]

SIMPLNX

  • ENH: ComputeFaceIPFColoring Outputs two RGB Arrays (#1427) [2025-09-10]
  • BUG: Laplacian was not releasing internal connectivity arrays. Now smooth edges, Hex and Tet Geometries (#1423) [2025-09-09]
  • ENH: Catch exceptions and allow float64 when converting Quaternions (#1425) [2025-09-08]
  • FILT: Read Zeiss TXM File filter added (#1424) [2025-09-08]
  • FILTER: Combine Transformation Matrices (#1396) [2025-09-05]
  • PERF/ENH: DBSCAN Rewrite (#1421) [2025-09-04]
  • BUG: Fixes not checking the return from 'validateNumberOfTuples' in preflight in some filters (#1413) [2025-09-04]
  • BUG: Fixes reading GrainMapper3D LabDCT dimensions correctly. (#1419) [2025-09-04]
  • BUG: Fixes bug when moving data in ExtractVertexGeometry (#1415) [2025-09-04]
  • OPT: DataStructure::getTopLevelData() optimizations (#1416) [2025-09-03]
  • BUG: Fixes copying the Shared Vertex List in Remove Flagged Vertices (#1414) [2025-09-03]
  • ENH: AbstractDataStore now uses proxies instead of references (#1409) [2025-09-03]
  • BUG: Fixes ReadGrainMapper to convert IPFColors if requested by user (#1407) [2025-08-26]
  • BUG: Fixes bug in BadDataNeighborOrientationCheck when finding the LaueOps instance (#1397) [2025-08-26]
  • API: ColorTable API added to convert from JSON to vector of structs (#1400) [2025-08-25]
  • COMP: Remove MSVC v142 toolset from CI (#1406) [2025-08-22]
  • BUG: Add Type Check to GetAllChildDataPaths() (#1399) [2025-08-22]
  • BUG: Fixes crash when Reading Legacy DREAM.3D file containing Stats data (#1391) [2025-08-07]
  • ENH: SurfaceNets can now transfer both cell and feature data to the triangle mesh (#1386) [2025-08-07]
  • BUG: Fixes ColorToGrayScale not checking for a 3-component input(s) (#1392) [2025-08-05]
  • ENH: Allows QuickSurfaceMesh to transfer voxel feature data (#1388) [2025-08-05]
  • ENH/BUG: RandomizeFeatureIds Repairs AM, Added Tests, Fixes Last Tuple Being Ignored (#1381) [2025-08-05]
  • BUG: Fix failing unit test due to missing directory. (#1390) [2025-08-05]
  • ENH: Add Preflight Feedback to ReadH5EBSDFilter for ANG and CTF Files (#1385) [2025-07-31]
  • VER: Update EBSDLib to v1.0.39 (#1387) [2025-07-30]
  • BUG: ApplyTransformationToGeometry - Include translation to/from global origin when saving transform. (#1384) [2025-07-29]
  • BUG: ApplyTransformationToGeometry now calculates correct origin when scaling image geometries. (#1383) [2025-07-28]
  • BUG: Fix crash if reading primitive types other than Int32 from HDF5 files (#1382) [2025-07-28]
  • ENH: CreateGeometry filter can now convert from a SIMPL pipeline. (#1379) [2025-07-28]
