7.4.1-Release¶

BlueQuartz Software is proud to release version 7.4.1 of DREAM3D-NX. This update contains key bug fixes, enhancements and introduces a some new features.

Release Date: March 23 2026

What's New and Fixed in DREAM3D-NX Version 7.4.1¶

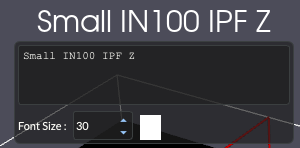

Easier Editing of Visualization Text Annotations

Just double-click on the annotation and an editing box will pop up.

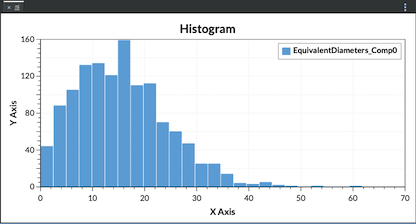

Faster 2D Plotting

Completely rewritten 2D Plotting code that emphasizes speed and export. Now you can export your charts as .svg files making them instantly publication ready!

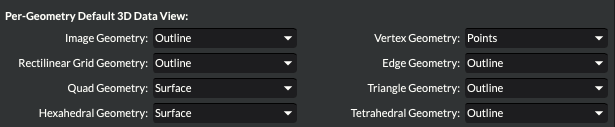

Per Geometry Default Data Views

Now you can define which Data View you want for each kind of geometry. Accessed through the preferences.

Interactive Orientation Widget

Click on the orientation widget in the lower left corner to instantly snap to a camera angle.

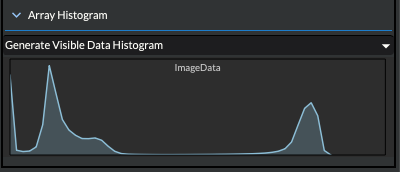

Mini Histogram View

Display a mini-histogram in the visualization view of the actively shown data.

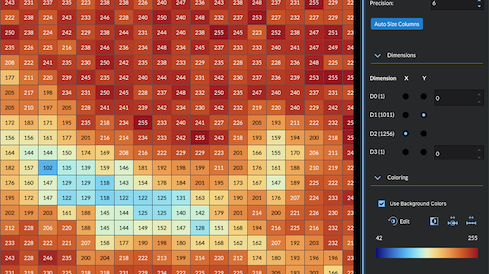

Updated Color Spreadsheet View

Combine the auto-column-size + colored background to bring your data alive!

2D Slice View Linking

Link 2D Image/Slice View Slice Number Settings between views

Read and Crop a Stack of Images

Newly added to the "Read Iamges [3D Stack]" filter, you can crop as you read the images saving time and memory.

Other Important Enhancements and Bug fixes¶

5 brand new filters added
Lots of quality-of-life to make using DREAM3D-NX easier
Performance enhancements on a number of filters

Known Issues¶

Synthetic Building Filters are not yet implemented
Long visualization operations can lock up the GUI. Please be patient for those operations to end.
Compute Feature Centroids will not respect periodic boundaries in a model
The Anaconda version will not save your GUI window layout correctly. The workaround is to create a layout to your liking and save it as a preset.
Computing Volumes from Triangle Features will not work correctly unless all triangle normals are consistent and the surface mesh is watertight.

Complete List of updates¶

In the below tables are summarized git logs from the commits since the last release. Each line should have a short code at the start of the line indicate a general area that the commit falls under. Also included are the Git commit hash. These can be fully reviewed at:

https://www.github.com/bluequartzsoftware/simplnx

https://www.github.com/bluequartzsoftware/DREAM3DNX

DREAM3D-NX¶

ENH: Double click on Text or Caption Annotations to edit (#1083) (56bdbd2c)
ENH: Match ParaView when right-click zoom in/out (#1081) (7555e3d2)
COMP: Fix compiler warnings for QVariant (#1082) (c2d72326)
BUG: Only copy VTK & Qt libs if required. (551ec283)
DOC: Add Doxygen comments and convert C-style arrays across DREAM3D-NX (#1068) (d5bbe77a)
BUG: Fix NXDataStructureModel and NXTableModel that break Qt API contracts (#1077) (efb61347)
BUG: Spreadsheet column auto size fixes (#1079) (1aa0cd27)
ENH: Migrate 2D charting from VTK to McPlotty (#1059) (8ed11a21)
ENH: Replace QSplitter view layout with M×N grid engine (VXViewGridWidget) (#1073) (1ed21d2a)
BUG: Fix 'remove selected columns' feature in spreadsheet module (#1078) (587e7d03)
BUG: Fix QSplitter based sizing bugs (#1075) (6548907e)
ENH: Per-geometry default 3D data view in Visualization Preferences (#1069) (4877cdba)
ENH: Add keyboard shortcuts to the Window Layout quick-access menu (#1072) (5755e3b1)
ENH: Move the Qt dependent MemoryStats parts down to simplnx. (#1074) (5e9bbdb9)
ENH: Auto-select single visible geometry when switching active visualization view (#1071) (2eb31217)
BUG: Fixes unexpected behavior in the user interface (#1061) (86d1ba7d)
BUG: Add null check for unregistered parameter types in NXFilter::setupPipelineFilter (#1060) (00d048d1)
ENH/BUG: Charting module bug fixes & enhancements (#1057) (fd327669)
UX: Apply Human Interface Guidelines to all QDialog .ui files (#1055) (5f267262)
BUG: Fix m_XAxisHasDoubles not set during charting loadState (#1058) (f893480d)
BUG: Fix image resample filter producing blurred output (#1051) (b4a7b538)
BUG: Update to use QDialog directly instead of the convenience functions (#1054) (86f0ce3a)
ENH: New Interactive Orientation Marker (#1048) (086d48ff)
ENH: Remove the buttons from the status area in the main DREAM3D-NX UI. (#1050) (6fbadf69)
BUG: Add null checks for QPointer in Charting & Spreadsheet modules during saveState (#1052) (b2426d1c)
BUG: Ensure the volume view has at least 1 render to make the opengl context active (9352c207)
ENH: Add option to only show 2D CropGeometryParameter controls (#1030) (1e7dc096)
ENH: Optimize the code paths to first render when Volume Rendering (#1047) (d2441bdc)
ENH: Ellipse Glyph Options (#1026) (5221fc31)
ENH: Visualization preset options (#1042) (e00fd484)
BUG: Out-of-Core Messaging bug fixes other small fixes (#1044) (935a1b49)
ENH/BUG: Spreadsheet data size checks and updates (#1038) (ba4e8b08)
ENH: orientation marker widget updates (#1035) (97d91210)
ENH: Add frames per second status update message for developer builds (#1036) (ce9f4d18)
BUG: Update 2D Image/Slice View to calculate histogram for each individual slice (#1037) (80081ada)
BUG: Fixes memory leak in VXMultidimSpreadsheetModel (#1034) (c5deaff2)
ENH: Add an option for array histogram generation in the visualization properties (#1033) (79f5e5ac)
BUG: Fix issue where the generated Build Plate grid did not match reality (#1029) (a7df00b5)
ENH: Adjust various UI elements and dialogs. Fix nullptr exceptions (#1028) (53ea5fad)
ENH: DataStructure Treeview Help Text Updates for Charting and Spreadsheet (#1027) (13852f17)
ENH: Various enhancements and bug fixes based on user feedback. (#1019) (8996d838)
BUG: Fix visualization data size limit default value (#1025) (692d348b)
BUG: Fix active array histogram when arrays only have one value (#1024) (6d31dd55)
ENH: Visualization Active Array Histogram (#1013) (686c1b5a)
ENH: Customizable Global Grid Axes (#1017) (4290984b)
CI: Update build bots to Qt 6.9 and Vtk 9.5 (#1023) (90bef8a0)
BUG: Fix filter parameter and DataStructure tree view splitter sizing (#1021) (dcd847f6)
BUG: Fix reloading when visualizing multi component array (#1020) (c72c25ea)
ENH: Add data structure size limit warnings for visualization & option to save to file (#1011) (c15a8cd3)
ENH: Glyph Data View and Annotation (#1006) (b6c40add)
BUG: Add missing normal values to state and settings file I/O (#1016) (66f987fb)
BUG: Fix build plate annotation origin/center inputs to translate after rotating (#1015) (af4f6961)
BUG: Fix shadowing of variables and not using override when needed. (#1003) (0add9e6b)
BUG: Update checkable button using non-checkable icon (#1014) (c489b928)
ENH: Image annotations can now be flipped horizontally and vertically (#1010) (7239161c)
MISC: Fix cmake warnings and fix conda builds on Linux/MacOS (#1012) (f26654ae)
PY: Update EbsdLib required version for conda builds (8bdce49e)
ENH: Image Geometry resample filter (#1004) (0d5d77e8)
DOC: Documentation updates to the user manual (#1007) (41667398)
API: Update to latest EbsdLib updates. (#1008) (53c2acb9)
ENH: Add automatic decimation for all vis data views (lod clin 10) (#971) (7c6862f1)
ENH: spreadsheet v2 (#998) (73a575a4)
ENH: 2D Charting Default sizes and precision adjustments (#1002) (1b3280a3)
ENH: Link 2D Image/Slice View Slice Number Settings between views (#990) (fbec7126)
BUG: Add accept/reject buttons to NXCropGeometryWidget. (#1005) (657b8f75)
BUG: Fix disabled state icon when filter is disabled (#1001) (827e72ff)

SIMPLNX¶

BUG: Fix parameter linking in WritePoleFigure Filter (c54635dcb)
COMP: Use C++20 std::numbers for value of Pi (#1558) (f7d4f6ffe)
DOC: Fix filter documentation and documentation related code bugs (#1547) (c7dacfd5c)
BUG: Fix two bugs in IdentifySampleSliceBySliceFunctor (#1562) (42bc9ba6e)
ENH: Again require in-memory data for ITK filters (#1555) (cefee380f)
ENH: Algorithm dispatch for Out-of-Core filter optimizations (#1545) (43695ade5)
ENH: Add GetSystemMemoryInfo() to MemoryUtilities (#1556) (32c987336)
FILT: Add the HierarchicalSmooth triangle mesh smoothing algorithm (#1551) (f080ee622)
PERF: InterpolatePointCloudToRegularGrid now calculates stats on-the-fly (#1549) (021a4f7bf)
BUG: Fix memory leak in ITKImageReader (#1550) (575eba636)
ENH: Move Filter executeImpl() logic to Algorithm classes (#1544) (8381d1dd5)
FILT: Compute Grouping Density filter added. (#1548) (30c9b1090)
DOC: Update doxygen comments in all simplnx library classes. (#1520) (9eec765b9)
DOC: Update pipeline references in each of the documentation files (#1543) (616fd40c8)
COMP: Combine Matrix3x1, Point3D, Vec3 into a Vec3 in Array.hpp (#1501) (4324d0f74)
ENH: RegularGridSampleSurfaceMesh algorithm updates for speed. (#1536) (a68b29a3d)
ENH: Resample Image Geometry uses much less memory at the cost of some computation time (#1529) (9057f4a8b)
REV/ENH: Compute Feature Sizes and Geometry Error Handling (#1540) (34c86ab4e)
ENH: Improve tar extraction robustness in TestFileSentinel (#1541) (c0712a59d)
COMP: Remove the dead JSON parsing code (#1539) (d3e0219b6)
ENH: Replace cmake subprocess tar.gz extraction with zlib in unit tests (#1538) (5e2835edd)
BUG: Missing DataModified actions were added to preflight method. (#1534) (483b63f31)
TEST: Test ParameterVersion() and clone() functions of each filter (#1531) (28a2e1d54)
ENH: IdentifySample -use algorithm class and add cancel and message feedback (#1530) (27f2dbaeb)
ENH: Remove redundant preflight checks that are already done in the parameter (#1535) (6cfbad116)
ENH: Add 2D cropping support and origin/spacing processing to ITK image readers (#1525) (751b4d9e9)
ENH: Check for cancel in ReadZeissTXMFile (#1526) (f07a357ad)
STY: Fixed filter tags to consistently use the full filter name (#1524) (88f639296)
BUG: Fix int32 overflow bug and code refactoring in Require Minimum Feature Size (#1522) (6444ac2c3)
ENH: Factor out the 6-face neighbor code that is systemic through out the code base. (#1523) (9bfcb01e4)
ENH: Fill Bad Data Out-of-Core Optimization (#1515) (e17f0d7dc)
BUG: Move unused algorithm codes to internal directory (#1521) (94bd6d445)
FILT: Extract Feature Boundaries 2D filter implemented (#1510) (6a72c8be3)
DOC: Organize the prebuilt pipelines to make it easier to find items (#1512) (820402dbe)
REV: Bad Data Neighbor Orientation Check (#1499) (ebdce592f)
BUG: Implement error handling for simplnx::Application class (#1516) (3f8947120)
BUG: Update use of progress feedback in OStreamUtilities (#1517) (ef068f582)
ENH: Add to/from string API to IArray (#1514) (403fc9a14)
DOC: Update documentation for various filters (#1513) (0c6ad28a1)
BUG FIX: Compute Euclidean Dist Map now does not create extra arrays. (#1506) (06ad1da7e)
ENH: CLAUDE.md file that contains code generation rules (#1518) (c7ce0eb5f)
ENH: Add unit test functions for comparing full datastructure (#1500) (ba7201fe3)
ENH: Changed Delete Original to in-place in ConvertDataFilter (#1509) (8049e23a1)
VERS: Update to EbsdLib 2.1.0 (#1507) (753f1ca4b)
Defaulting MultiThresholdObjects output array to uint8. (#1502) (49919b086)
BUG: Compute Feature Reference Misorientation algorithm bug fixes (#1504) (f7fec9819)
API: AttributeMatrix - Change getNumTuple to getNumberOfTuples (#1503) (ea4fafbad)
STY: Fix warnings about unintended slicing of object (#1490) (66f76c15f)
ENH: Add missing algorithm classes to some filters (#1301) (d2b300f21)
BUG: Fix SegmentFeatures progress messages to display proper percent complete (#1498) (8f903a3fa)
BUG: New implementation for ComputeNeighborhoods filter (#1485) (f34c38916)
ENH: Compute Array Statistics error messages and documentation updates (#1496) (24eb07695)
BUG: MergeTwins 'Active' array not initialized correctly plus other enhancements (#1497) (7131c4592)
BUG/ENH: Fix Backwards Pipeline Compatibility and Add Testing (#1476) (e45bca2a5)
ENH: Use a python script to generate the skeleton code for a new filter (#1492) (3fed74208)
STY: Use more distinct syntax to toggle clang-formatting for specific sections of code (#1491) (26f0cb257)
COMP: Update TimeUtilities::timestamp to use std::local_time() function (#1486) (0335e12c2)
ENH: ItkImageWriter allow user to set the number of padding digits and the fill char (#1489) (2af43ab06)
COMP: Fix MSVC template warnings (#1474) (c5c6d4289)
BUG: Fixes issue when imported data sets or groups have the same path. (#1480) (179d85cdd)
ENH: Update error messages from Dream3dIO.cpp by not overwriting lower errors (#1484) (a901a88a3)
BUG: Create EmptyNeighborListStores during preflight (#1483) (39f649518)
FILTER: Write LAMMPS File (#1479) (83ec02836)
BUG: Fixed an issue with ITK tiff reading on Windows conda builds (#1475) (c3b6a520e)
ENH: Isolate Largest Feature now checks for cancel button and sends progress (#1473) (5d22556fe)
ENH: Update to EbsdLib 2.0.0 API (#1472) (413e6fa46)
ENH: ReadZeissTxmFile - Add the ability to crop the incoming geometry. (#1471) (72debd95b)
BUG: Fixes issue when segmenting features with a +1 feature count (#1466) (3d1cc153a)
ENH: Enable compiler warnings/errors for python builds (#1470) (11a80e7ae)
BUG: When reading a legacy NeighborList, the incorrect group was passed to the reader (#1464) (ff9f167c2)
FILT: Create Vertex Geometry from Orientations (#1469) (dea4b3e93)
REV: ComputeFeatureNeighborCAxisMisalignment reviewed and updated (#1467) (963f8d64e)
ENH: ConvertOrientationsFilter uses an Algorithm Class. (#1468) (39f28cf1e)
VV: Read EDAX EBSD Data (.ang) (#1462) (2729ec1e0)
TEST: Update RotateSampleRefFrame unit test to also test 45 & 180 in all directions (#1465) (531893fbd)
