3.8. Pipeline Output View

Pipeline Output Log

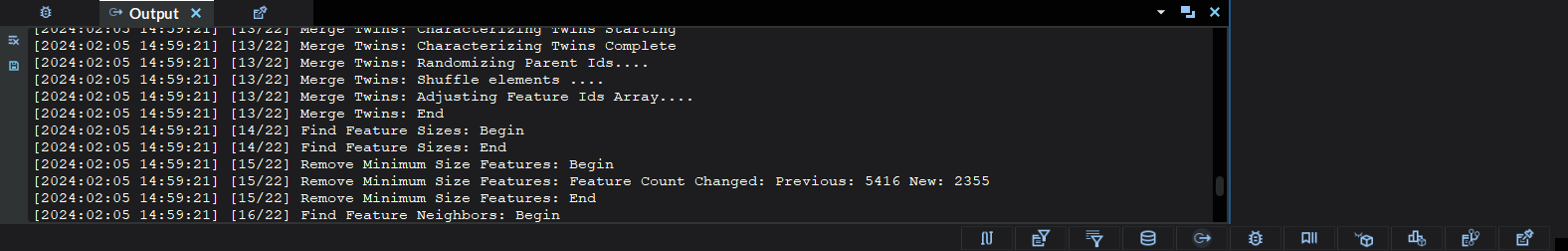

Figure 3.11 Pipeline Output Log

The Pipeline Output View displays any output messages associated with GUI actions or Filters that are actively being used in the Pipeline View.

Messages are added to the output view when:

  • Preflight status is updated

  • An executing pipeline needs to display output

  • Progress updates are sent from Filters

There are three different actions you can take on the output area;

  • Clear (clear button) : Clears all of the current text from the output area

  • Save (save button) : Saves all of the current text from the output area to a user specified file

  • Stream (stream button) : Streams all of the text sent to the output area to a user specified file in real time. Only text sent to the output area after this is activated will be streamed to the file. When this button is clicked again, the streaming will stop.
