8.14. Compute Frequency Histogram

Group (Subgroup)

Statistics(Ensemble)

Description

This Filter accepts DataArray(s) as input, creates histogram DataArray(s) in specified DataGroup from input DataArray(s), then calculates histogram values according to user parameters and stores values in created histogram DataArray(s).

The output is in the form of 2 Data Arrays. The first data array will have the counts. The number of tuples of the array is the same as the number of bins in the histogram. The second data array will have the bin ranges. The array has 2 components where the first component of each tuple is the minimum of the bin (inclusive) and the second component of the tuple is the maximum for that bin (exclusive).

Example Data

Using some data about the “Old Faithful” geyser in the United States from the R site, here is the top few lines of data:

Duration, Wait Time {3.6,79}, {1.8,54}, {3.333,74}, {2.283,62}, {4.533,85}, {2.883,55}, {4.7,88}, ..

Example Output

The range on the data is [1.6, 5.1]. Using 8 bins starting from 1.5 with a bin width of 0.5 the expected output for a “Left Closed, Right Open” histogram is the following table data.

[1.5,2) 51 [2,2.5) 41 [2.5,3) 5 [3,3.5) 7 [3.5,4) 30 [4,4.5) 73 [4.5,5) 61 [5,5.5) 4

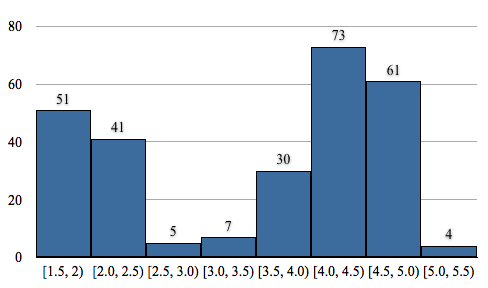

Example Plot

Example Plot of the Frequency Data from the Old Faithful data set

Additional Information

Also see Histogram Quick Reference at https://plot.ly/histogram/.

Input Parameter(s)

Parameter Name	Parameter Type	Parameter Notes	Description
Number of Bins	Scalar Value	Int32	Specifies number of histogram bins (greater than zero)
Use Custom Min & Max Range	Bool		Whether the user can set the min and max values to consider for the histogram
Min Value	Scalar Value	Float64	Specifies the inclusive lower bound of the histogram.
Max Value	Scalar Value	Float64	Specifies the exclusive upper bound of the histogram.

Input Data

Parameter Name	Parameter Type	Parameter Notes	Description
Input Data Arrays	MultiArraySelection		The list of arrays to calculate histogram(s) for

Output Parameters

Parameter Name	Parameter Type	Description
Create New DataGroup for Histograms	Bool	Whether or not to store the calculated histogram(s) in a new DataGroup
New DataGroup Path	DataGroupCreation	The path to the new DataGroup in which to store the calculated histogram(s)
Output DataGroup Path	DataGroupSelection	The complete path to the DataGroup in which to store the calculated histogram(s)
Suffix for created Histogram Bin Counts	String	String appended to the end of the histogram array names
Suffix for created Histogram Bin Ranges	String	String appended to the end of the histogram array names

Example Pipelines

Image Histogram
Confidence Index Histogram

License & Copyright

Please see the description file distributed with this Plugin

DREAM3D-NX Help

If you need help, need to file a bug report or want to request a new feature, please head over to the DREAM3DNX-Issues GitHub site where the community of DREAM3D-NX users can help answer your questions.

Example Data (Raw)

 Index, Duration, Wait Time
 {1,3.6,79},
 {2,1.8,54},
 {3,3.333,74},
 {4,2.283,62},
 {5,4.533,85},
 {6,2.883,55},
 {7,4.7,88},
 {8,3.6,85},
 {9,1.95,51},
 {10,4.35,85},
 {11,1.833,54},
 {12,3.917,84},
 {13,4.2,78},
 {14,1.75,47},
 {15,4.7,83},
 {16,2.167,52},
 {17,1.75,62},
 {18,4.8,84},
 {19,1.6,52},
 {20,4.25,79},
 {21,1.8,51},
 {22,1.75,47},
 {23,3.45,78},
 {24,3.067,69},
 {25,4.533,74},
 {26,3.6,83},
 {27,1.967,55},
 {28,4.083,76},
 {29,3.85,78},
 {30,4.433,79},
 {31,4.3,73},
 {32,4.467,77},
 {33,3.367,66},
 {34,4.033,80},
 {35,3.833,74},
 {36,2.017,52},
 {37,1.867,48},
 {38,4.833,80},
 {39,1.833,59},
 {40,4.783,90},
 {41,4.35,80},
 {42,1.883,58},
 {43,4.567,84},
 {44,1.75,58},
 {45,4.533,73},
 {46,3.317,83},
 {47,3.833,64},
 {48,2.1,53},
 {49,4.633,82},
 {50,2,59},
 {51,4.8,75},
 {52,4.716,90},
 {53,1.833,54},
 {54,4.833,80},
 {55,1.733,54},
 {56,4.883,83},
 {57,3.717,71},
 {58,1.667,64},
 {59,4.567,77},
 {60,4.317,81},
 {61,2.233,59},
 {62,4.5,84},
 {63,1.75,48},
 {64,4.8,82},
 {65,1.817,60},
 {66,4.4,92},
 {67,4.167,78},
 {68,4.7,78},
 {69,2.067,65},
 {70,4.7,73},
 {71,4.033,82},
 {72,1.967,56},
 {73,4.5,79},
 {74,4,71},
 {75,1.983,62},
 {76,5.067,76},
 {77,2.017,60},
 {78,4.567,78},
 {79,3.883,76},
 {80,3.6,83},
 {81,4.133,75},
 {82,4.333,82},
 {83,4.1,70},
 {84,2.633,65},
 {85,4.067,73},
 {86,4.933,88},
 {87,3.95,76},
 {88,4.517,80},
 {89,2.167,48},
 {90,4,86},
 {91,2.2,60},
 {92,4.333,90},
 {93,1.867,50},
 {94,4.817,78},
 {95,1.833,63},
 {96,4.3,72},
 {97,4.667,84},
 {98,3.75,75},
 {99,1.867,51},
 {100,4.9,82},
 {101,2.483,62},
 {102,4.367,88},
 {103,2.1,49},
 {104,4.5,83},
 {105,4.05,81},
 {106,1.867,47},
 {107,4.7,84},
 {108,1.783,52},
 {109,4.85,86},
 {110,3.683,81},
 {111,4.733,75},
 {112,2.3,59},
 {113,4.9,89},
 {114,4.417,79},
 {115,1.7,59},
 {116,4.633,81},
 {117,2.317,50},
 {118,4.6,85},
 {119,1.817,59},
 {120,4.417,87},
 {121,2.617,53},
 {122,4.067,69},
 {123,4.25,77},
 {124,1.967,56},
 {125,4.6,88},
 {126,3.767,81},
 {127,1.917,45},
 {128,4.5,82},
 {129,2.267,55},
 {130,4.65,90},
 {131,1.867,45},
 {132,4.167,83},
 {133,2.8,56},
 {134,4.333,89},
 {135,1.833,46},
 {136,4.383,82},
 {137,1.883,51},
 {138,4.933,86},
 {139,2.033,53},
 {140,3.733,79},
 {141,4.233,81},
 {142,2.233,60},
 {143,4.533,82},
 {144,4.817,77},
 {145,4.333,76},
 {146,1.983,59},
 {147,4.633,80},
 {148,2.017,49},
 {149,5.1,96},
 {150,1.8,53},
 {151,5.033,77},
 {152,4,77},
 {153,2.4,65},
 {154,4.6,81},
 {155,3.567,71},
 {156,4,70},
 {157,4.5,81},
 {158,4.083,93},
 {159,1.8,53},
 {160,3.967,89},
 {161,2.2,45},
 {162,4.15,86},
 {163,2,58},
 {164,3.833,78},
 {165,3.5,66},
 {166,4.583,76},
 {167,2.367,63},
 {168,5,88},
 {169,1.933,52},
 {170,4.617,93},
 {171,1.917,49},
 {172,2.083,57},
 {173,4.583,77},
 {174,3.333,68},
 {175,4.167,81},
 {176,4.333,81},
 {177,4.5,73},
 {178,2.417,50},
 {179,4,85},
 {180,4.167,74},
 {181,1.883,55},
 {182,4.583,77},
 {183,4.25,83},
 {184,3.767,83},
 {185,2.033,51},
 {186,4.433,78},
 {187,4.083,84},
 {188,1.833,46},
 {189,4.417,83},
 {190,2.183,55},
 {191,4.8,81},
 {192,1.833,57},
 {193,4.8,76},
 {194,4.1,84},
 {195,3.966,77},
 {196,4.233,81},
 {197,3.5,87},
 {198,4.366,77},
 {199,2.25,51},
 {200,4.667,78},
 {201,2.1,60},
 {202,4.35,82},
 {203,4.133,91},
 {204,1.867,53},
 {205,4.6,78},
 {206,1.783,46},
 {207,4.367,77},
 {208,3.85,84},
 {209,1.933,49},
 {210,4.5,83},
 {211,2.383,71},
 {212,4.7,80},
 {213,1.867,49},
 {214,3.833,75},
 {215,3.417,64},
 {216,4.233,76},
 {217,2.4,53},
 {218,4.8,94},
 {219,2,55},
 {220,4.15,76},
 {221,1.867,50},
 {222,4.267,82},
 {223,1.75,54},
 {224,4.483,75},
 {225,4,78},
 {226,4.117,79},
 {227,4.083,78},
 {228,4.267,78},
 {229,3.917,70},
 {230,4.55,79},
 {231,4.083,70},
 {232,2.417,54},
 {233,4.183,86},
 {234,2.217,50},
 {235,4.45,90},
 {236,1.883,54},
 {237,1.85,54},
 {238,4.283,77},
 {239,3.95,79},
 {240,2.333,64},
 {241,4.15,75},
 {242,2.35,47},
 {243,4.933,86},
 {244,2.9,63},
 {245,4.583,85},
 {246,3.833,82},
 {247,2.083,57},
 {248,4.367,82},
 {249,2.133,67},
 {250,4.35,74},
 {251,2.2,54},
 {252,4.45,83},
 {253,3.567,73},
 {254,4.5,73},
 {255,4.15,88},
 {256,3.817,80},
 {257,3.917,71},
 {258,4.45,83},
 {259,2,56},
 {260,4.283,79},
 {261,4.767,78},
 {262,4.533,84},
 {263,1.85,58},
 {264,4.25,83},
 {265,1.983,43},
 {266,2.25,60},
 {267,4.75,75},
 {268,4.117,81},
 {269,2.15,46},
 {270,4.417,90},
 {271,1.817,46},
 {272,4.467,74}}
