8.101. Read Text Data Array
Group (Subgroup)
Core (IO/Read)
Description
This Filter allows the user to import a plain text file containing the contents of a single Attribute Array. The delimeters can be one of the following:
+ comma
+ semicolon
+ space
+ colon
+ tab
The filter does not care about how many values per line but only about reading the proper number of values from the file.
Use Cases
There are several use cases for this filter. Both use cases have in common that the data in the input file should all be contained in a single Data Array. If your data file instead is organized in a table format where each column of data represents a distinct Data Array then the ‘Read CSV Filter’ should be used instead.
Use Case 1

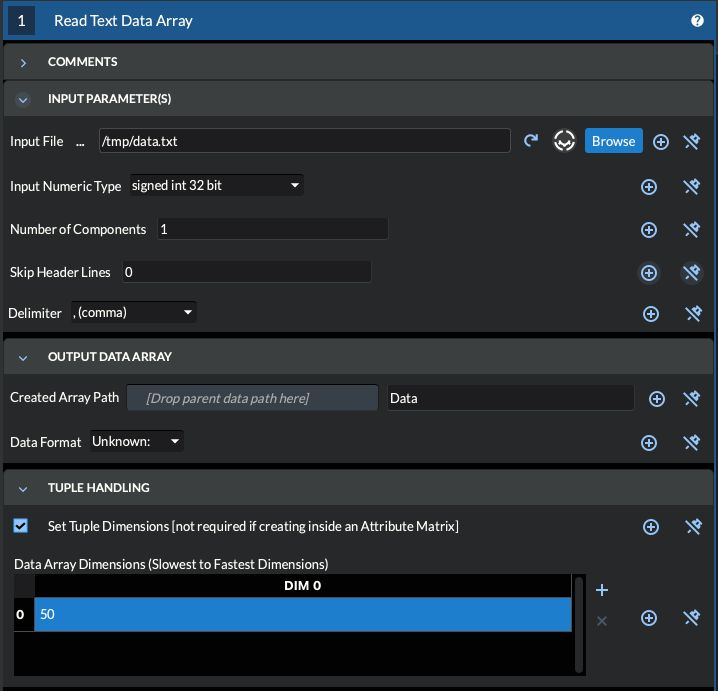

In this use case the user simply wants to read the data into an array within DREAM3D-NX but does not need to store that data into an AttributeMatrix. In this case the following parameters should be set:
Set Tuple Dimensions should be ON
DataArray Dimensions should also be created. At the minimum the user will need to set the value to the total number of values that will be read.
Use Case 2
In this use case the user wants to read the data into an existing Attribute Matrix. In this case the user should set the “Created Arra Path” where the parent object is the target Attribute Matrix and also set the name of the created Data Array. The following parameters should be set with the following values:
Set Tuple Dimensions should be OFF
DataArray Dimensions can be safely ignored as the tuple dimensions from the AttributeMatrix will be used instead.
Example Data
The example data below has 50 elements. This means that it could successfully be read into an array that has 10 Tuples and 5 Componenets or 50 Tuples and 1 Component. The AttributeMatrix would need to have dimensions such that mulplying all the dimensions together yields 50. For example the AttributeMatrix could have X=5, Y=5 and Z=2 or X=10, Y=5 and Z=1. This filter does not require any type of Geometry as the filter is reading data directly into an array.
0 1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49
Scalar Types
Value |
Type |
|---|---|
0 |
signed int 8 bit |
1 |
unsigned int 8 bit |
2 |
signed int 16 bit |
3 |
unsigned int 16 bit |
4 |
signed int 32 bit |
5 |
unsigned int 32 bit |
6 |
signed int 64 bit |
7 |
unsigned int 64 bit |
8 |
Float 32 bit |
9 |
Double 64 bit |
Delimeter Types
Value |
Type |
|---|---|
0 |
comma |
1 |
semicolon |
2 |
space |
3 |
colon |
4 |
tab |
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Input File |
FileSystemPath |
File path that points to the imported file |
|
Input Numeric Type |
Scalar Value |
NumericType |
Data Type to interpret and store data into. |
Number of Components |
Scalar Value |
UInt64 |
Number of columns |
Skip Header Lines |
Scalar Value |
UInt64 |
Number of lines at the start of the file to skip |
Delimiter |
Choices |
Delimiter for values on a line |
Output Data Array
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Created Array Path |
ArrayCreation |
DataPath or Name for the underlying Data Array |
|
Data Format |
DataStoreFormat |
This value will specify which data format is used by the array’s data store. An empty string results in in-memory data store. |
Tuple Handling
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Set Tuple Dimensions [not required if creating inside an Attribute Matrix] |
Bool |
This allows the user to set the tuple dimensions directly rather than just inheriting them. This option is NOT required if you are creating the Data Array in an Attribute Matrix |
|
Data Array Dimensions (Slowest to Fastest Dimensions) |
DynamicTable |
Slowest to Fastest Dimensions. Note this might be opposite displayed by an image geometry. |
Example Pipelines
License & Copyright
Please see the description file distributed with this Plugin
DREAM3D-NX Help
If you need help, need to file a bug report or want to request a new feature, please head over to the DREAM3DNX-Issues GitHub site where the community of DREAM3D-NX users can help answer your questions.
