10.6. Apply Transformation to Geometry

Group (Subgroup)

Rotation, Scale & Transformation

Description

This Filter applies a spatial transformation – rotation, translation, scaling, or an arbitrary 4x4 matrix – to a Geometry. Both Image Geometries and node-based geometries (Vertex, Edge, Triangle, Quadrilateral, Tetrahedral, Hexahedral) are supported.

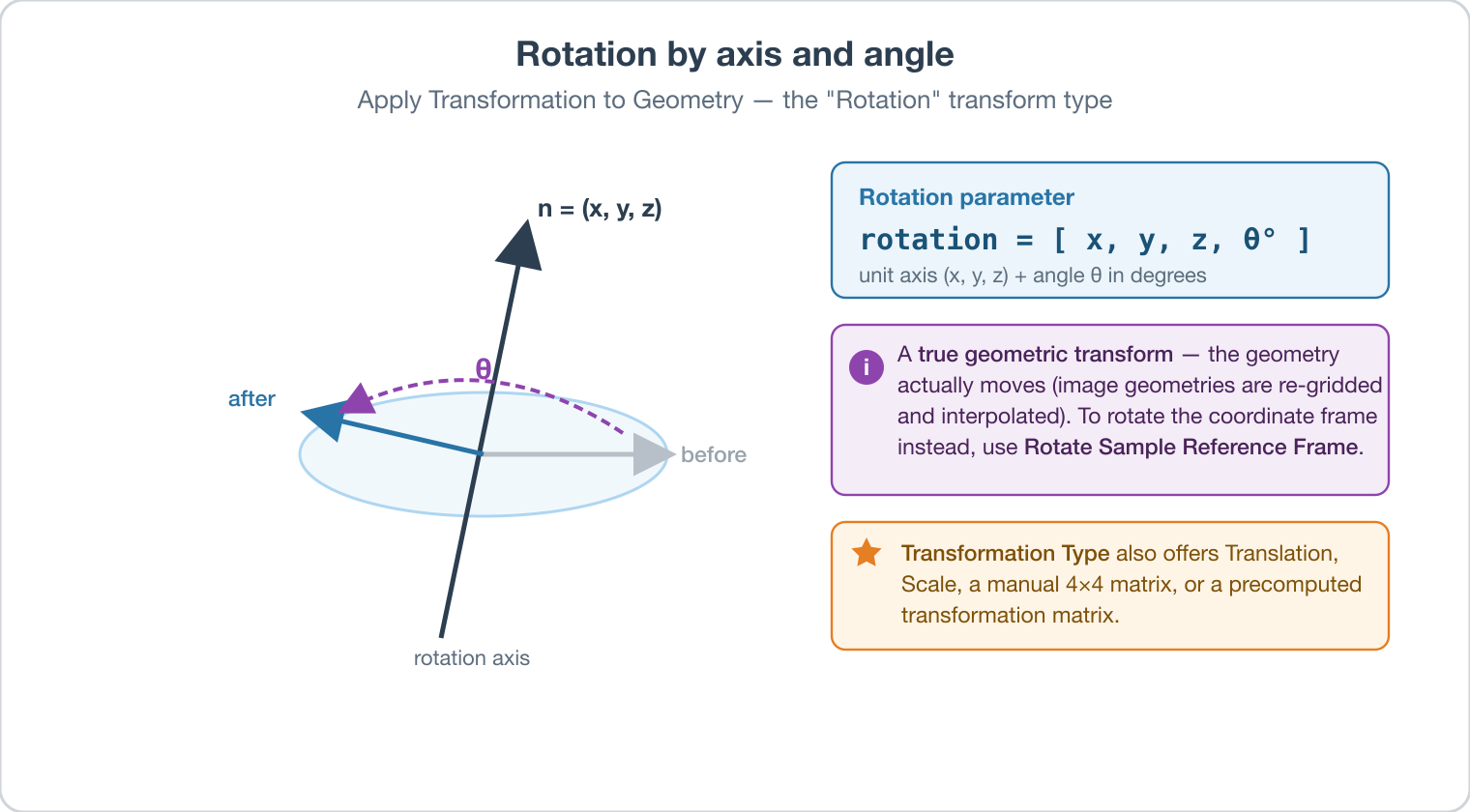

Fig. 1: The "Rotation" transform type rotates the geometry by an angle θ (in degrees) about a user-specified axis (x, y, z). Unlike Rotate Sample Reference Frame, this is a true geometric transform that moves the geometry itself.

Node Geometries

For node-based geometries, the transformation modifies vertex positions only. No interpolation occurs. Multiple transformations can be applied in succession without artifacts.

Image Geometry

For Image Geometries, transformation requires re-gridding because cell positions are implicit in the grid spacing and origin. After transformation, a new grid is generated and cell data is interpolated onto it. This is governed by two extra parameters:

  • Interpolation Method – how cell data values are sampled from the old grid (see below).

  • Cell Attribute Matrix – which attribute matrix holds the cell data to transform.

Image Geometry Caveat: Successive Transformations

Applying multiple transformations one-at-a-time to an Image Geometry produces visible re-gridding artifacts because each intermediate step re-samples the data. The following example shows a 90-degree rotation done as a single step versus as two 45-degree steps:

Description


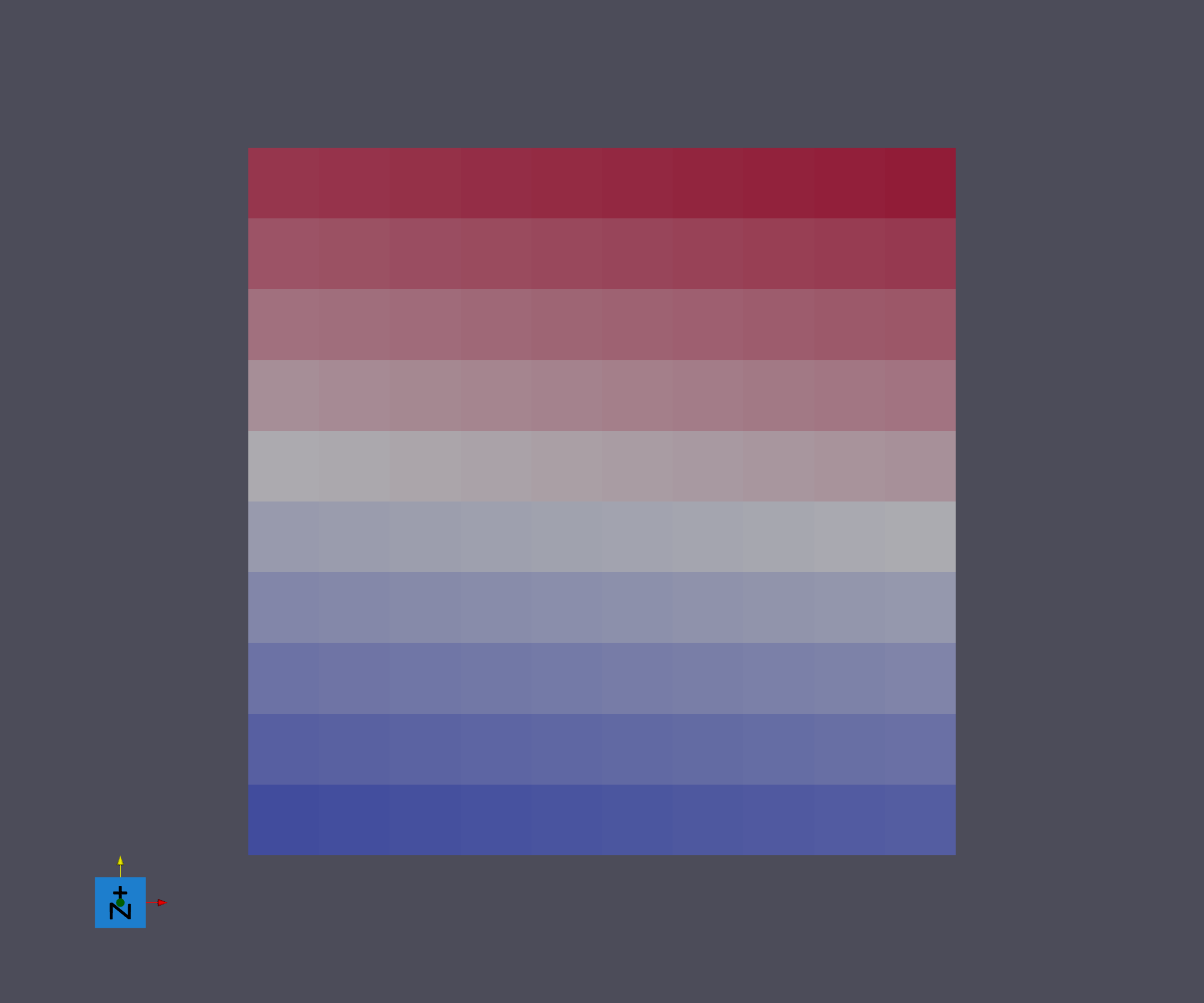

Input Image

Input Image

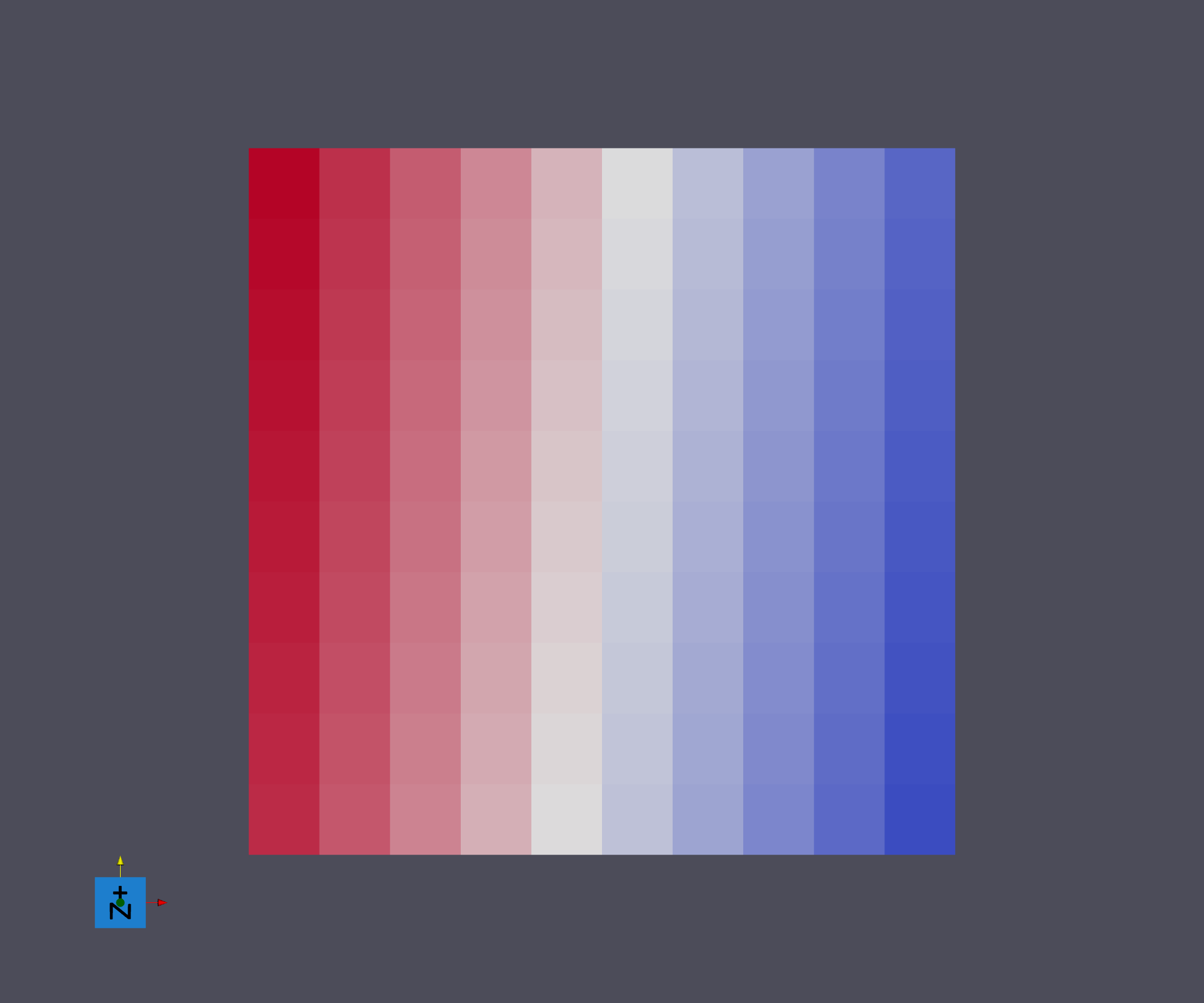

After single 90-degree rotation around <001>

Rotation of 90 Degrees around the <0,0,1> axis

After first 45-degree rotation

1st Rotation of 45 Degrees around the <0,0,1> axis

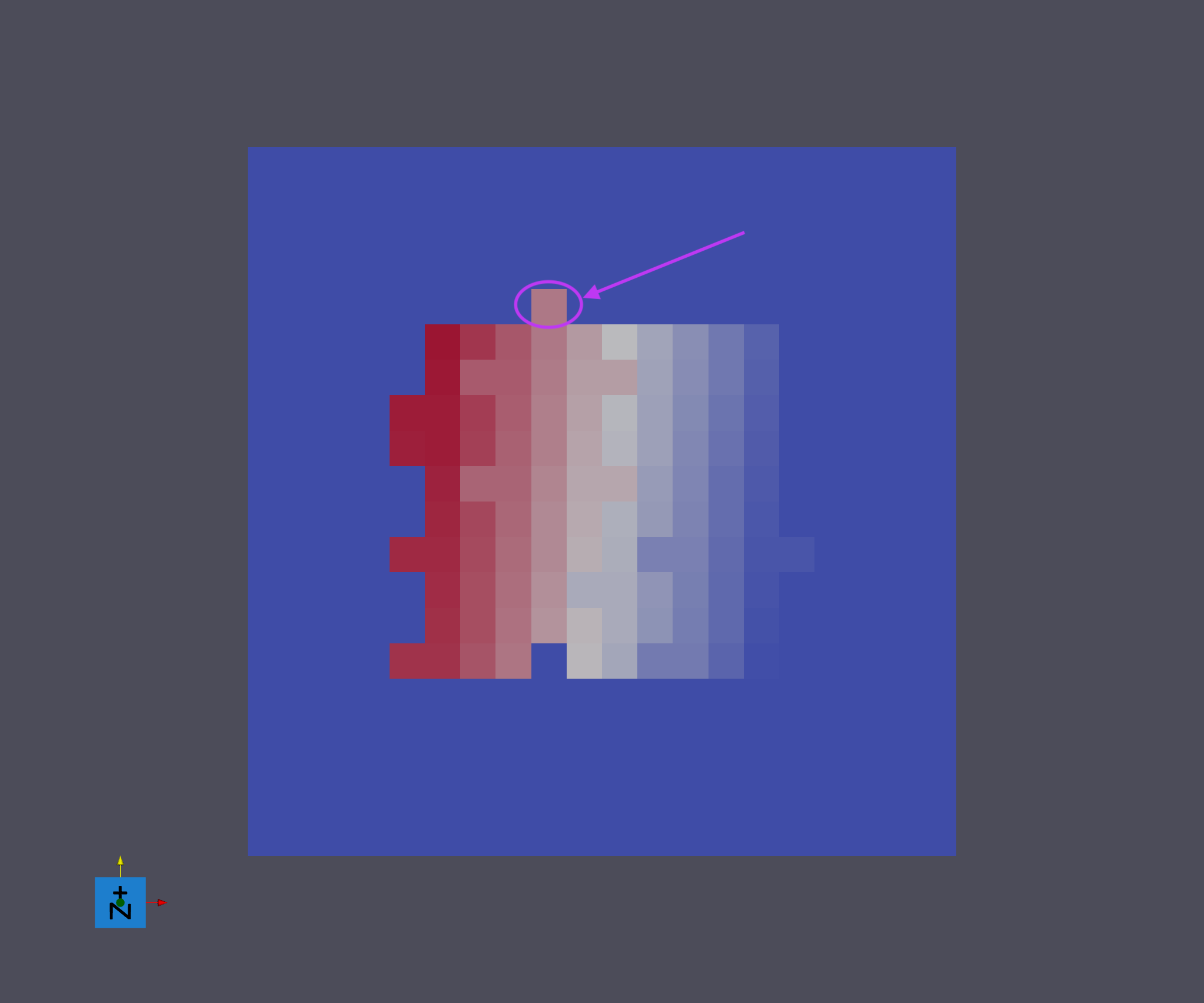

After second 45-degree rotation (artifacts visible)

2nd Rotation of 45 Degrees around the <0,0,1> axis

The problem is that after the first 45-degree rotation, the cell centers no longer align with the new grid cells – the re-gridding has shifted them. On the second rotation, those misalignments compound.

Description


Input Image

Input Image

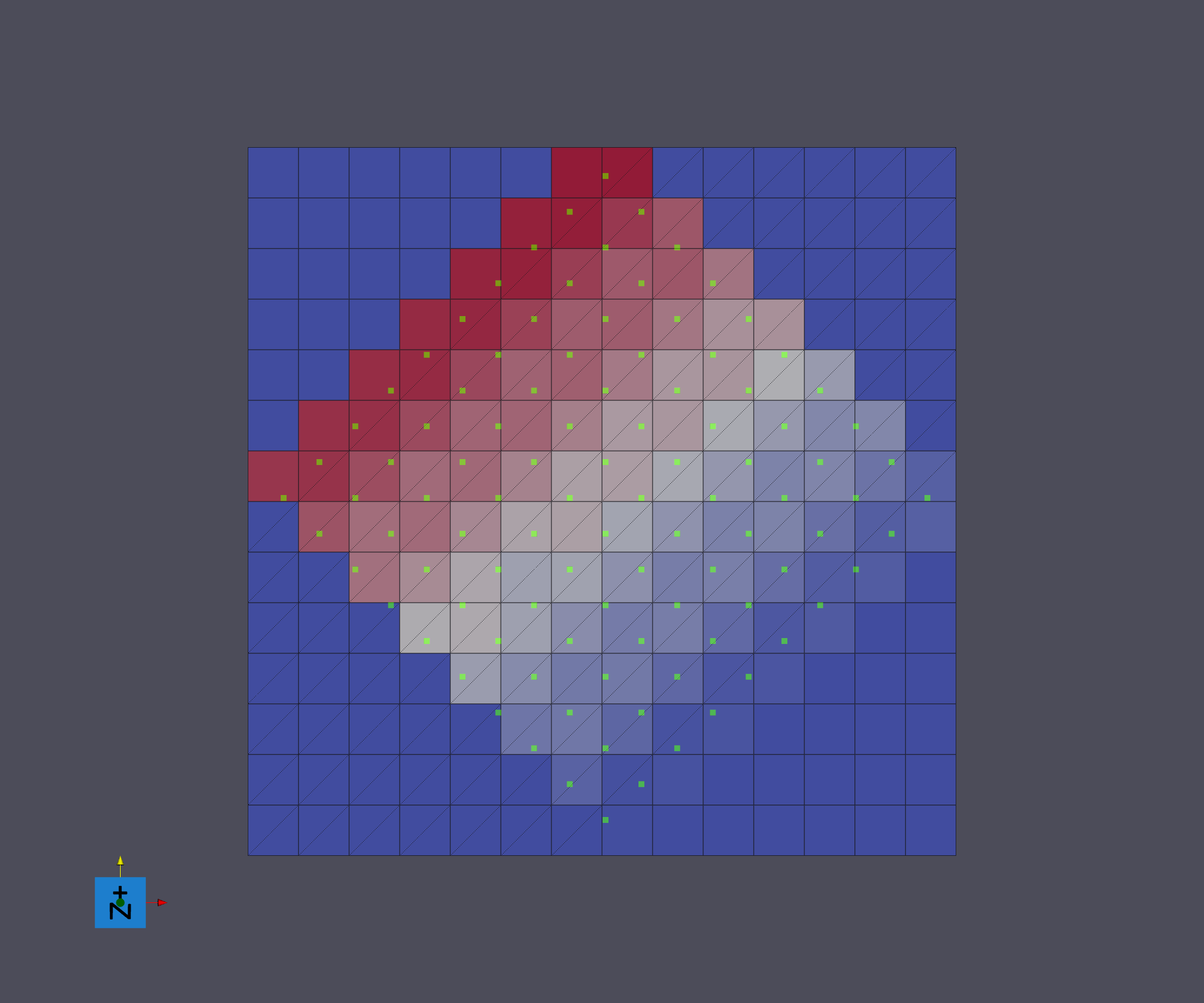

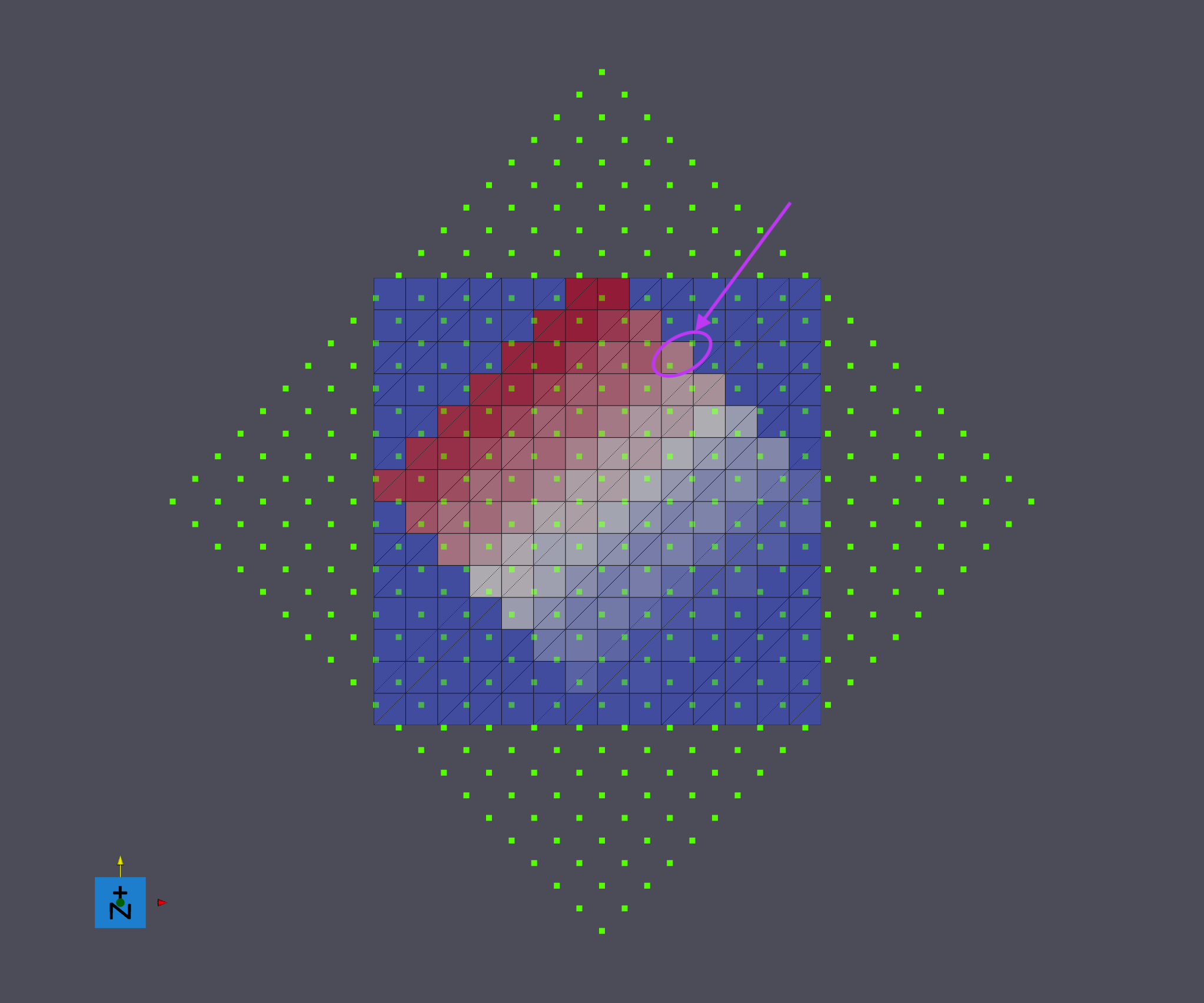

After 1st 45-degree rotation (cell centers in green)

1st Rotation of 45 Degrees around the <0,0,1> axis

To avoid these artifacts, combine all transformations into a single 4x4 matrix first using Combine Transformation Matrices, then apply that combined matrix as a single transformation:

Description


Combined 90-degree rotation applied once

Combined Rotation of 90 Degrees around the <0,0,1> axis

This caveat only applies to Image Geometries. Node-based geometries can have any number of transformations chained without issue.

Example Transformations (Image Geometry)

Description

Example Output Image

Input Image

Input Image

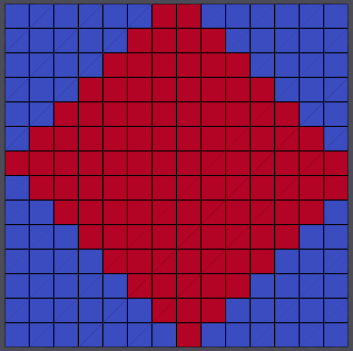

45-degree rotation around <001>

Rotation of 45 Degrees around the <0,0,1> axis

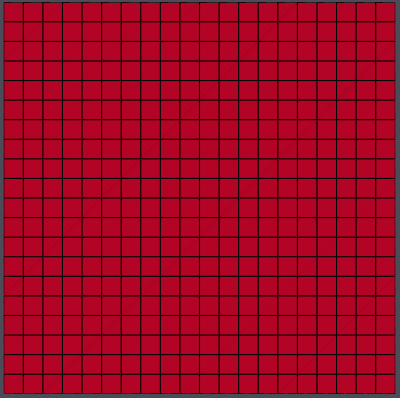

2x scale in X and Y

Scaled by 2x in the X and Y axis.

Transformation Type

The Transformation Type parameter selects how the transformation is specified:

Value

Type

Description

0

No Transform

Identity (geometry unchanged).

1

Pre-Computed Transformation Matrix (4x4)

A 4x4 matrix supplied as a 16-element float32 Attribute Array in row-major order.

2

Manual Transformation Matrix

A 4x4 matrix typed in directly.

3

Rotation

Axis-angle: a unit vector (x, y, z) and an angle in degrees.

4

Translation

A (dx, dy, dz) translation vector in the geometry’s physical units.

5

Scale

A (sx, sy, sz) scaling vector (dimensionless multipliers).

The linear / bi-linear / tri-linear interpolation math is adapted from Purdue CS530 slides, page 36.

If Translate Geometry To Global Origin Before Transformation is enabled, the geometry is shifted so its centroid sits at (0, 0, 0) before the transformation is applied, then translated back. Use this to rotate about the geometry’s center rather than the world origin.

Interpolation Method (Image Geometry Only)

  • Nearest Neighbor [0] – each output cell takes the value of the nearest input cell. Fast; preserves sharp boundaries; blocky.

  • Linear (trilinear in 3D) [1] – each output cell value is interpolated from surrounding input cells. Smoother; may blur sharp features.

  • No Interpolation [2] – no resampling. Use only when the transformation does not change the grid topology (e.g., integer translations that align exactly with the existing grid).

Saving the Final Transformation Matrix

Optionally, the final 4x4 transformation matrix can be saved as an Attribute Array. The output is a 16-element float32 array in row-major order:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

represents the 4x4 matrix:

1   2   3   4
5   6   7   8
9   10  11  12
13  14  15  16

Required Input Sources

Input Parameter(s)

Parameter Name

Parameter Type

Parameter Notes

Description

Transformation Type

Choices

The type of transformation to perform.

Transformation Matrix

DynamicTable

The 4x4 Transformation Matrix

Rotation Axis-Angle

Vector of Float32 Values

Order=x,y,z,w (Deg)

w (w in degrees)

Translation

Vector of Float32 Values

Order=X,Y,Z

A pure translation vector

Scale

Vector of Float32 Values

Order=X,Y,Z

0>= value < 1: Shrink, value = 1: No transform, value > 1.0 enlarge

Precomputed Transformation Matrix Path

Array Selection

Allowed Types: float32

A precomputed 4x4 transformation matrix

Translate Geometry To Global Origin Before Transformation

Bool

Specifies whether to translate the geometry to (0, 0, 0), apply the transformation, and then translate the geometry back to its original origin.

Input Geometry

Parameter Name

Parameter Type

Parameter Notes

Description

Selected Geometry

Geometry Selection

Image, Rectilinear Grid, Vertex, Edge, Triangle, Quadrilateral, Tetrahedral, Hexahedral

The target geometry on which to perform the transformation

Image Geometry Resampling/Interpolation

Parameter Name

Parameter Type

Parameter Notes

Description

Resampling or Interpolation (Image Geometry Only)

Choices

Select the type of interpolation algorithm. (0)Nearest Neighbor, (1)Linear Interpolation, (3)No Interpolation

Cell Attribute Matrix (Image Geometry Only)

AttributeMatrixSelection

The path to the Cell level data that should be interpolated. Only applies when selecting an Image Geometry.

Optional Output Transform Matrix

Parameter Name

Parameter Type

Parameter Notes

Description

Save Transformation Matrix

Bool

Save the generated transform matrix as a Data Array

Transform Matrix Output Path

ArrayCreation

The output array that contains the transformation Matrix.

Example Pipelines

  • Pipelines/SimplnxCore/Examples/apply_transformation_basic.d3dpipeline

  • Pipelines/SimplnxCore/Examples/apply_transformation_image.d3dpipeline

  • Pipelines/SimplnxCore/Examples/apply_transformation_node.d3dpipeline
