10.110. Read HDF5 Dataset
Group (Subgroup)
Core (IO/Read)
Description
This filter imports one or more datasets from an HDF5 file and stores each one as a Data Array in DREAM3D-NX. HDF5 (Hierarchical Data Format version 5) is a binary file format that organizes named datasets inside a tree of groups, much like files inside folders on a disk.

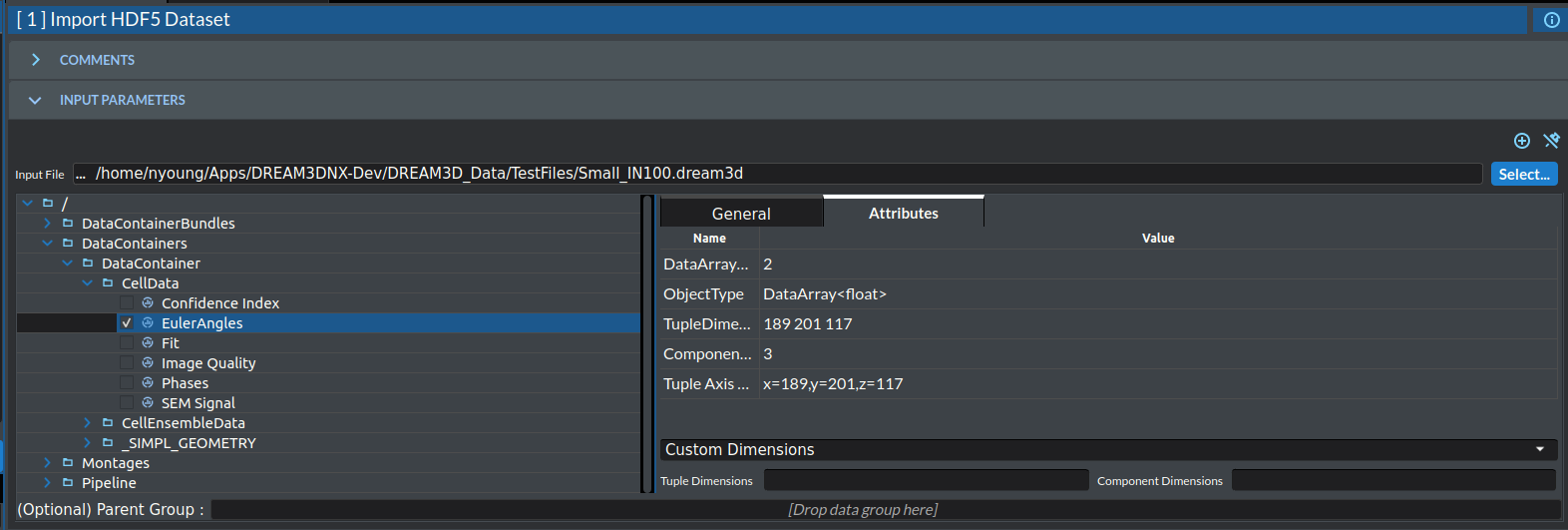

When the filter is configured, the user browses the structure of the selected HDF5 file and checks one or more datasets to import. Multiple datasets can be selected and imported in a single pass; each checked dataset becomes its own Data Array. For every checked dataset the user supplies how that dataset’s elements should be split into tuple dimensions and component dimensions:
Tuple dimensions describe how many elements (tuples) the array holds — for example, the number of voxels or rows of data.
Component dimensions describe how many values belong to each tuple — for example, a 3-component vector stores 3 values per tuple.
The filter places the imported array either at the top level of the Data Structure or, if the user selects an existing Data Group or Attribute Matrix as the parent, inside that container. When an Attribute Matrix is chosen as the parent, the tuple dimensions are taken automatically from that Attribute Matrix and do not need to be entered.
How It Works

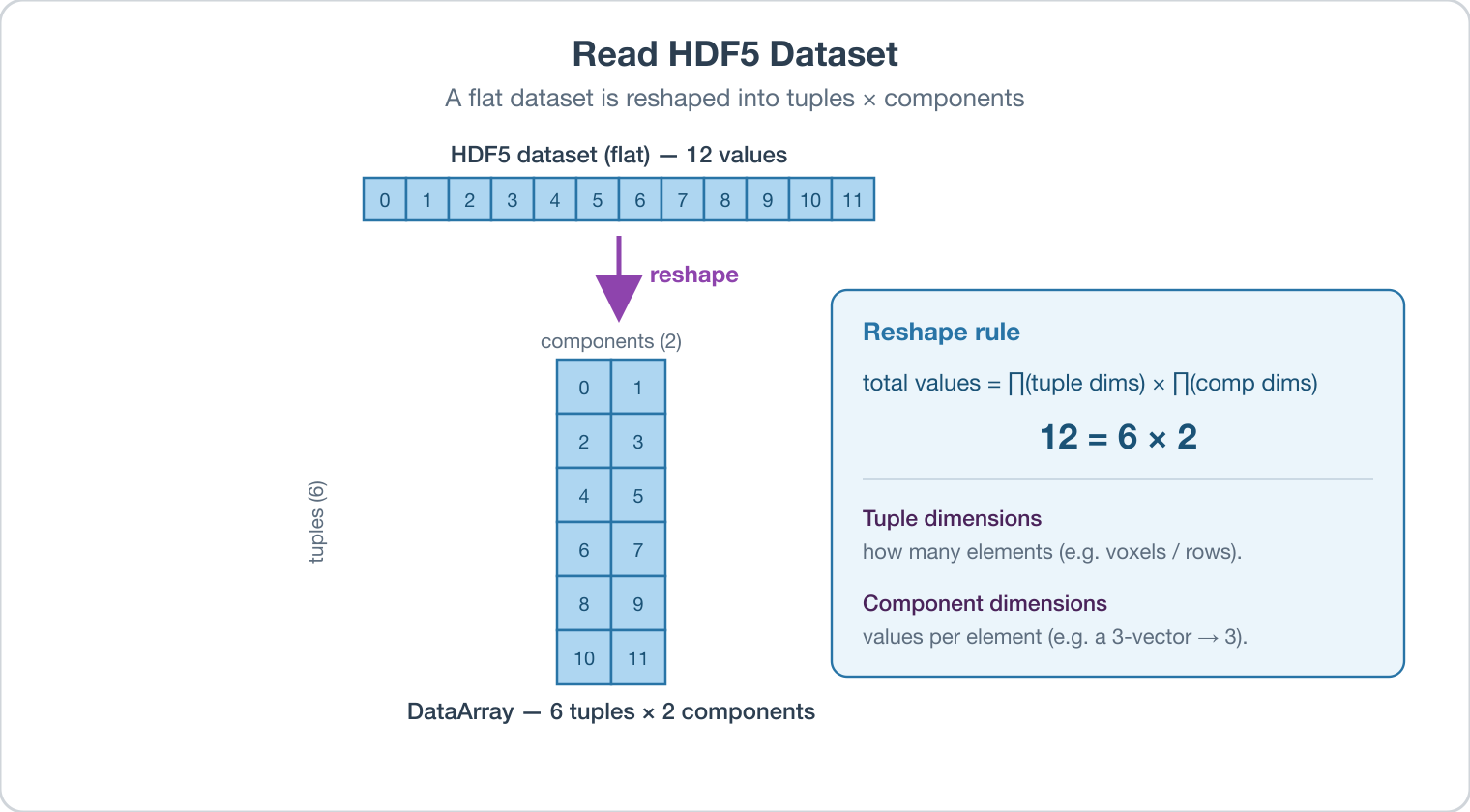

The import only succeeds when the math is consistent: the total number of elements actually stored in the HDF5 dataset must equal the number of tuples multiplied by the number of components per tuple.
HDF5 dataset element count == (product of tuple dimensions) x (product of component dimensions)
If these two totals do not match, the filter reports a preflight error and nothing is imported.
The component dimensions are entered as a comma-separated list. For example:
3, 4means 3 x 4 = 12 components per tuple5, 2, 1means 5 x 2 x 1 = 10 components per tuple6means 6 components per tuple
Worked Examples
Example 1 (valid): Suppose an HDF5 file contains a 1D dataset with 12,000 elements.
The user enters component dimensions of
2(so 2 components per tuple).The user enters tuple dimensions of
6000(so 6,000 tuples).Check: 6,000 tuples x 2 components = 12,000 elements, which equals the HDF5 dataset element count of 12,000. The dataset imports successfully.
Example 2 (invalid): Suppose an HDF5 file contains a 1D dataset with 12,000 elements.
The user enters component dimensions of
5, 2, 2(so 5 x 2 x 2 = 20 components per tuple).The user enters tuple dimensions of
35, 5, 2, 2(so 35 x 5 x 2 x 2 = 700 tuples).Check: 700 tuples x 20 components = 14,000 elements, which does not equal the HDF5 dataset element count of 12,000. The filter reports a preflight error.
Example 3 (valid, multi-dimensional dataset): Suppose an HDF5 file contains a dataset whose stored dimensions are 16 x 1001 x 1001, for a total of 16 x 1001 x 1001 = 16,032,016 elements.
The user enters component dimensions of
2(so 2 components per tuple). This means there must be 16,032,016 / 2 = 8,016,008 tuples.The user enters tuple dimensions of
8, 1001, 1001(so 8 x 1001 x 1001 = 8,016,008 tuples).Check: 8,016,008 tuples x 2 components = 16,032,016 elements, which equals the HDF5 dataset element count of 16,032,016. The dataset imports successfully.
Required Input Sources
None — this filter reads directly from an external .h5/.hdf5 file on disk. The imported array may optionally be placed into an existing Data Group or Attribute Matrix if one is selected as the parent.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Select HDF5 File |
ReadHDF5Dataset |
The HDF5 file data to import |
Example Pipelines
License & Copyright
Please see the description file distributed with this Plugin
