10.86. Fill Bad Data
Group (Subgroup)
Processing (Cleanup)
Description
This Filter distinguishes small bad-data noise from large real defects in a segmented dataset and fills only the noise. Cells with Feature Id = 0 are considered bad; the filter groups them into connected components, classifies each component by its size, and fills components below the user threshold by copying the most common neighbor’s data into them. Components at or above the threshold are left intact, since they likely represent real features (pores, cracks, voids).

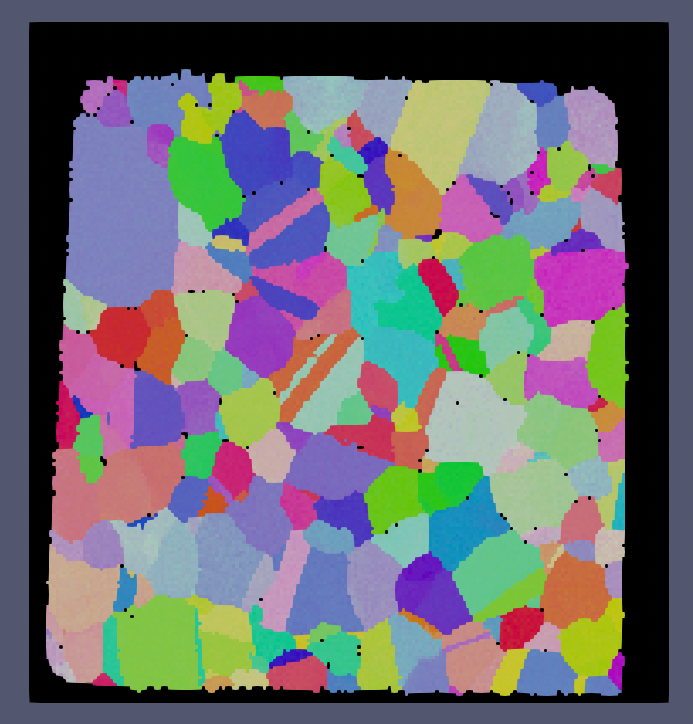

Small IN100 Before |

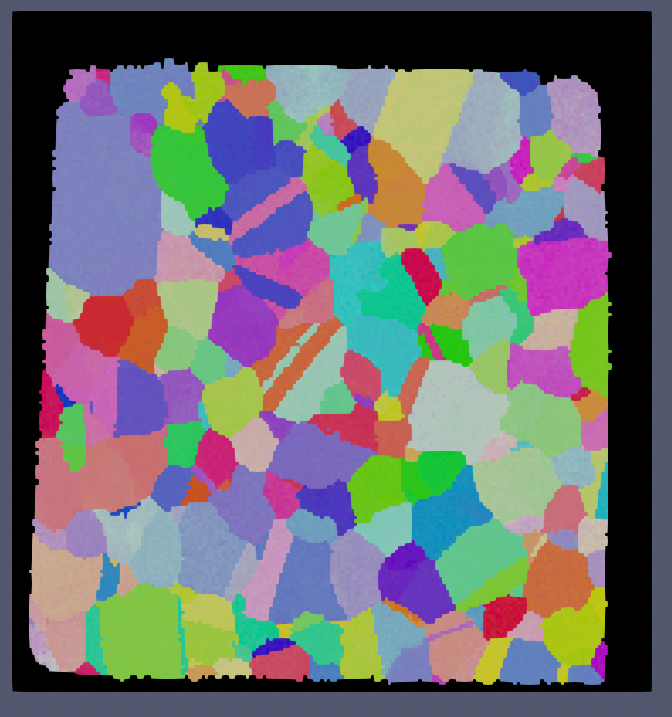

Small IN100 After |
|---|---|
|
|
The above images show the before and after results of running this filter with a minimum defect size of 1000 voxels. The all-black overscan area around the sample exceeds the 1000-voxel threshold, so it is correctly preserved.
How This Filter Works
Connected components. All bad cells (Feature Id = 0) are grouped into connected regions using face neighbors.
Classify by size.
Components with fewer than Minimum Allowed Defect Size cells are flagged as small noise and filled.
Components with at least Minimum Allowed Defect Size cells are kept as bad data, or optionally moved to a new phase if Store Defects as New Phase is enabled.
Iterative fill. Each cell flagged for filling examines its 6 face neighbors and copies all cell-level array data from whichever neighbor’s Feature Id is most common. The pass repeats until every flagged cell has been filled.
Minimum Defect Size Units
The Minimum Allowed Defect Size is in cells (integer voxel count), not physical units. To convert a physical-volume threshold into a cell count, divide by the cell volume (dx * dy * dz).
Choose the threshold based on what you want to keep:
For removing single-cell or small-cluster EBSD scan noise, 5-50 cells is typical.
For preserving real pores while cleaning small noise (as in the example above), thresholds of 500-5000 cells depend on pore size.
Store Defects as New Phase
When this option is enabled, any connected component that meets or exceeds the size threshold has its cells reassigned to a new phase index rather than being left as Feature Id 0. This makes large defects available to downstream filters as a distinct phase (e.g., for separate statistics or visualization).
Performance Note
The implementation is chunk-sequential and optimized for out-of-core data. For large datasets stored on disk, expect 10-100x speedups over random-access algorithms.
WARNING: Feature Data Will Become Invalid
By modifying cell-level data, any feature-level data that was previously computed (sizes, centroids, average orientations, etc.) will most likely be invalid after this filter runs. Re-run any downstream feature-level computation filters to ensure accurate results.
Required Input Sources
Cell Feature Ids – produced by a segmentation filter such as Segment Features (Misorientation) or Segment Features (Scalar). Cells with Feature Id = 0 are treated as bad.
Cell Phases – typically read from EBSD data; only required when Store Defects as New Phase is enabled.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Minimum Allowed Defect Size |
Scalar Value |
Int32 |
The size at which a group of bad Cells are left unfilled as a ‘defect’ |
Store Defects as New Phase |
Bool |
Whether to change the phase of ‘defect’ larger than the minimum allowed size above |
Input Data Objects
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Selected Image Geometry |
Geometry Selection |
Image |
The target geometry |
Cell Feature Ids |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
Specifies to which feature each cell belongs. |
Cell Phases |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
Specifies to which Ensemble each Cell belongs. |
Attribute Arrays to Ignore |
MultiArraySelection |
The list of arrays to ignore when performing the algorithm |
Example Pipelines
(02) SmallIN100 Full Reconstruction
License & Copyright
Please see the description file distributed with this Plugin
