10.142. Set Origin & Spacing (Image Geom)

Group (Subgroup)

Core (Spatial)

Description

This Filter updates the origin and/or spacing of an existing Image Geometry. The grid dimensions (number of cells per axis) are unchanged; only the physical placement and physical size of the cells are modified. Use this filter to:

Correct an incorrect origin after import (e.g., reset to (0, 0, 0) after a sample-frame rotation).
Convert the geometry’s spacing to a different physical unit (e.g., millimeters → microns).
Recenter a geometry so the user-specified point lands at the volume’s geometric center.

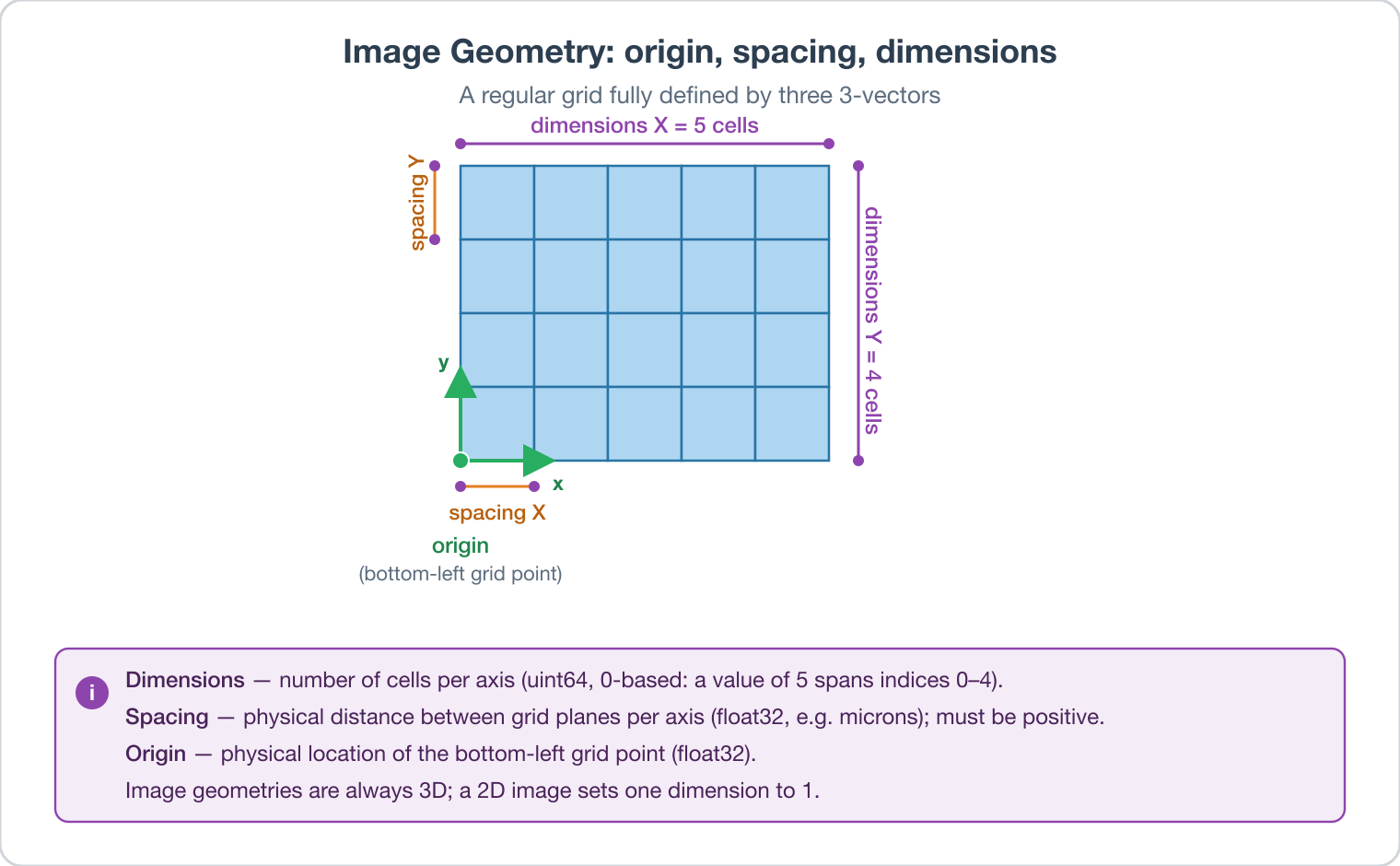

Fig. 1: An Image Geometry is defined by its dimensions, spacing, and origin. This filter changes the origin (bottom-left grid point) and/or spacing (distance between grid planes); the dimensions are left unchanged.

Origin

The Origin parameter sets the new physical location of the bottom-left corner of the geometry. For example, to change the origin from (0, 0, 0) to (10, 4, 8):

X Origin: 10
Y Origin: 4
Z Origin: 8

Origin coordinates are in the geometry’s physical units (microns, millimeters, etc.).

Spacing

The Spacing parameter sets the new physical distance between grid planes along each axis. Spacing values must be positive and non-zero. Updating spacing rescales the entire physical extent of the geometry (since the number of cells is unchanged) but leaves cell data values untouched.

Put Input Origin at the Center of Geometry

If Put Input Origin at the Center of Geometry is enabled, the user-supplied origin value is treated as the geometric center of the volume rather than the bottom-left corner. The filter computes the corresponding bottom-left origin so that the user-supplied point lands at the center. This is convenient for centering a geometry on a meaningful reference point (sample center, beam axis, etc.) without computing the corner offset by hand.

Required Input Sources

Input Image Geometry – the geometry to modify in place. Typically produced by Create Image Geometry, ITK Import Image Stack, or an EBSD reader.

Input Parameter(s)

Parameter Name	Parameter Type	Parameter Notes	Description
Image Geometry	Geometry Selection	Image	Path to the target ImageGeom
Set Origin	Bool		Specifies if the origin should be changed
Put Input Origin at the Center of Geometry	Bool		Specifies if the origin should be aligned with the corner (false) or center (true)
Origin (Physical Units)	Vector of Float32 Values	Order=X,Y,Z	Specifies the new origin values in physical units.
Set Spacing	Bool		Specifies if the spacing should be changed
Spacing (Physical Units)	Vector of Float32 Values	Order=X,Y,Z	Specifies the new spacing values in physical units.

Example Pipelines

License & Copyright

Please see the description file distributed with this Plugin

DREAM3D-NX Help

If you need help, need to file a bug report or want to request a new feature, please head over to the DREAM3DNX-Issues GitHub site where the community of DREAM3D-NX users can help answer your questions.
