12.49. Segment Features (C-Axis Misalignment)
Group (Subgroup)
Reconstruction (Segmentation)
Description
This Filter groups neighboring Cells (voxels) whose crystal C-axes are nearly aligned into Features (grains), producing a FeatureIds array that labels every cell in the input geometry with a grain number. The c-axis misalignment refers to the angle between the [0001] directions (the c-axis in the hexagonal system) that is present between neighboring Cells. Because the c-axis is a direction (not a vector), the misalignment is folded into [0°, 90°]: two nearly antiparallel c-axes are considered aligned.
This filter is only valid for hexagonal phases. For general EBSD grain segmentation (cubic, orthorhombic, or any other symmetry), use Segment Features (Misorientation) instead; for scalar-based segmentation, use Segment Features (Scalar).
The input geometry may be either an Image Geometry or a RectGrid Geometry.
When to Use This Filter
In hexagonal materials (titanium, magnesium, zinc, zirconium, etc.), the C-axis is the unique, mechanically significant crystal direction. For many studies – especially those focused on basal-plane slip, texture, or deformation – it is more informative to group cells by how closely their C-axes point in the same direction than by their full orientation. Two cells may have very different full orientations (rotated differently about their own C-axis) but still belong to the same grain if their C-axes point the same way.
If you need full misorientation-based grain segmentation (accounting for rotations about the C-axis), use Segment Features (Misorientation) instead.
How This Filter Works
The process by which the Features are identified is a standard burn algorithm that grows each feature outward from a seed cell:
Select the next unassigned Cell in row-major order that is eligible to seed a Feature (not excluded by the mask and with a phase value greater than 0), add it to an empty list and set its Feature Id to the current Feature
Compare the Cell to each of its neighbors as selected by the Neighbor Scheme parameter (i.e., calculate the c-axis misalignment with each neighbor)
Add each neighbor Cell that has a C-axis misalignment below the user defined tolerance to the list created in 1. and set the Feature Id of the neighbor Cell to the current Feature
Remove the current Cell from the list and move to the next Cell and repeat 2. and 3.; continue until no Cells are left in the list
Increment the current Feature counter and repeat steps 1. through 4.; continue until no eligible Cells remain unassigned in the dataset
The C-axis direction for each cell is computed on-the-fly from the cell’s orientation quaternion. See Compute Average C-Axis Orientations for a full explanation of the C-axis concept and why it only makes physical sense for hexagonal symmetries.
After all the Features have been identified, a Feature Attribute Matrix is created for the Features and each Feature is flagged as Active in the matrix (index 0 is reserved and never active).
Tolerance and Units
The Misalignment Tolerance is in degrees. Typical values:
1-3 degrees – very tight; splits grains with even slight C-axis variation (subgrains).
5 degrees – the common default for grain segmentation.
10+ degrees – loose; merges adjacent grains whose C-axes are within a cone.
Hexagonal Crystal Structures Required
The c-axis is only a physically meaningful unique axis for hexagonal Laue classes. Every Cell that can participate in the segmentation (phase > 0 and not excluded by the mask) must belong to an Ensemble whose crystal structure is Hexagonal-Low (6/m) or Hexagonal-High (6/mmm); otherwise the filter fails with error -8363. A phase value with no corresponding entry in the Crystal Structures array produces error -8364. Unindexed Cells (phase 0) and masked-out Cells are exempt from this requirement, so datasets with unindexed points — or with a non-hexagonal phase that has been masked out — process normally.
Randomize Feature Ids
When Randomize Feature Ids is enabled the final Feature Ids are relabeled with a deterministic (fixed-seed) random permutation, which improves visual contrast between neighboring Features when coloring by Feature Id. The segmentation itself is unchanged, and repeated runs produce identical output. (Legacy DREAM.3D 6.x always randomized with a clock-derived seed, so its labeling differed on every run; see the migration deviation notes in vv/deviations/CAxisSegmentFeaturesFilter.md of the simplnx source tree.)
Neighbor Scheme
The Neighbor Scheme parameter provides the following choices:
Face Neighbors [0]: Only the 6 face-sharing neighbors of a voxel are considered during segmentation.
All Connected Neighbors [1]: All 26 neighbors connected by a face, edge, or vertex are considered during segmentation.
DREAM.3D version 6.x only used face neighbors. The default here is still Face Only for backward compatibility.

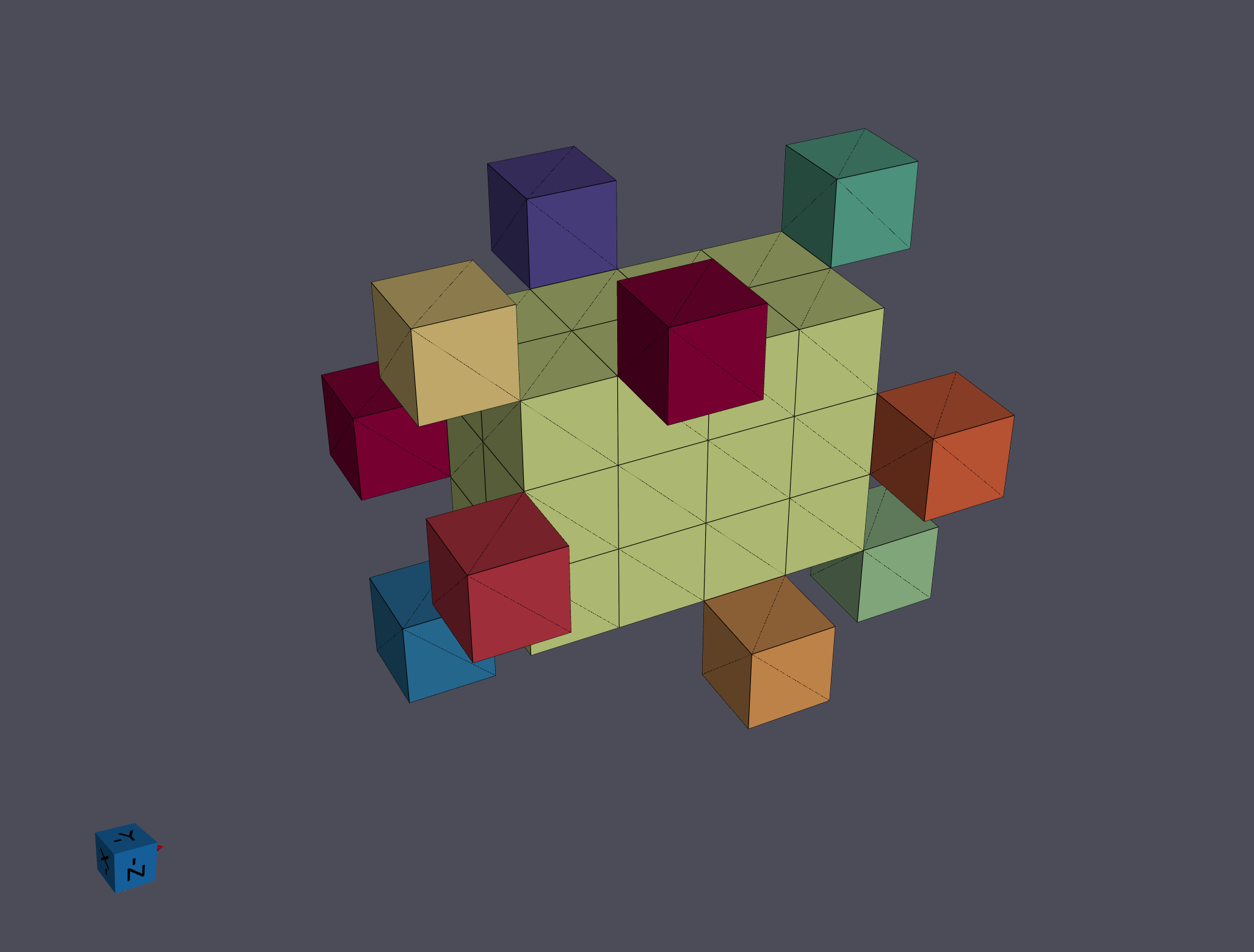

Neighbor Scheme = “Face Only” |

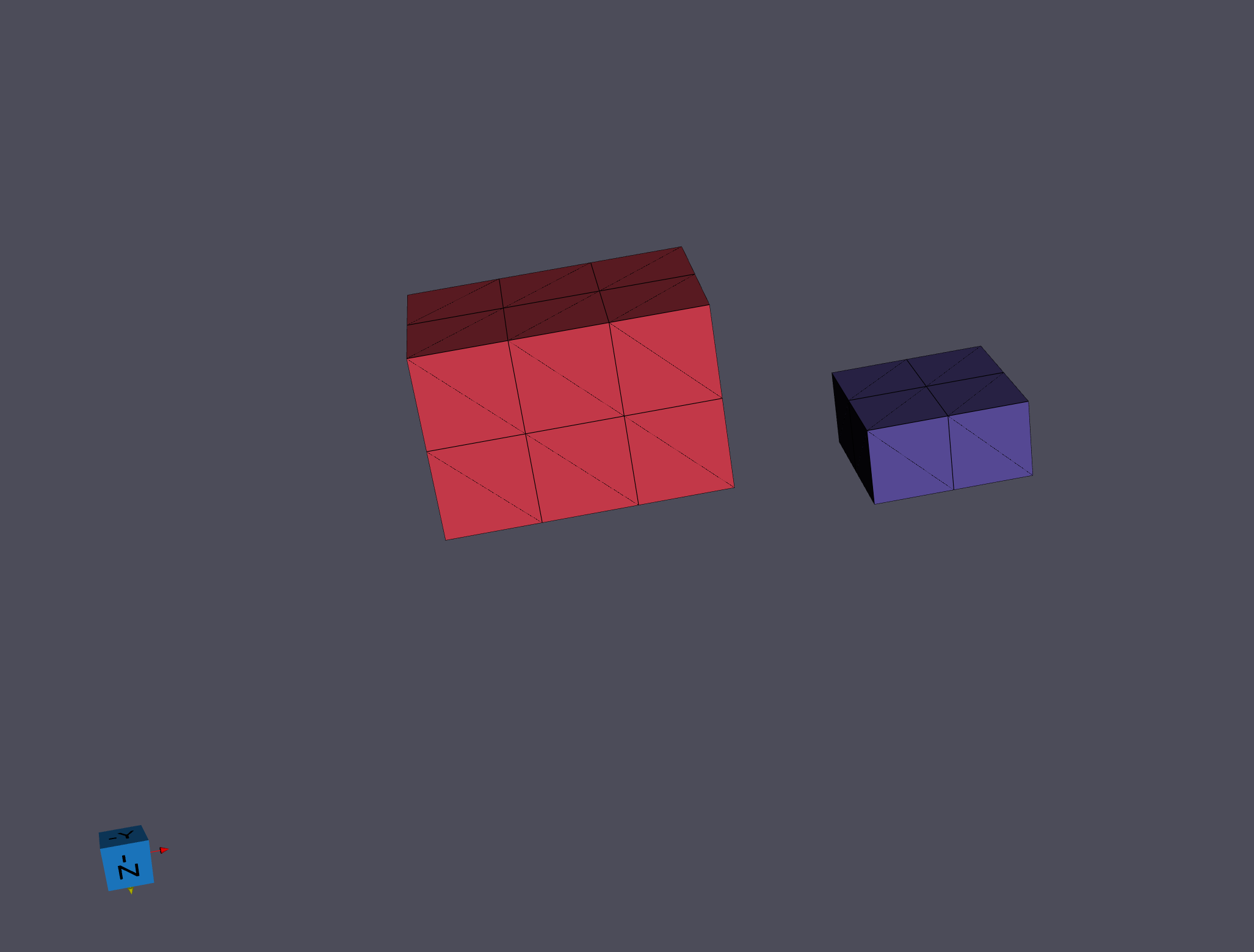

Neighbor Scheme = “All Connected” |
|---|---|
|
|

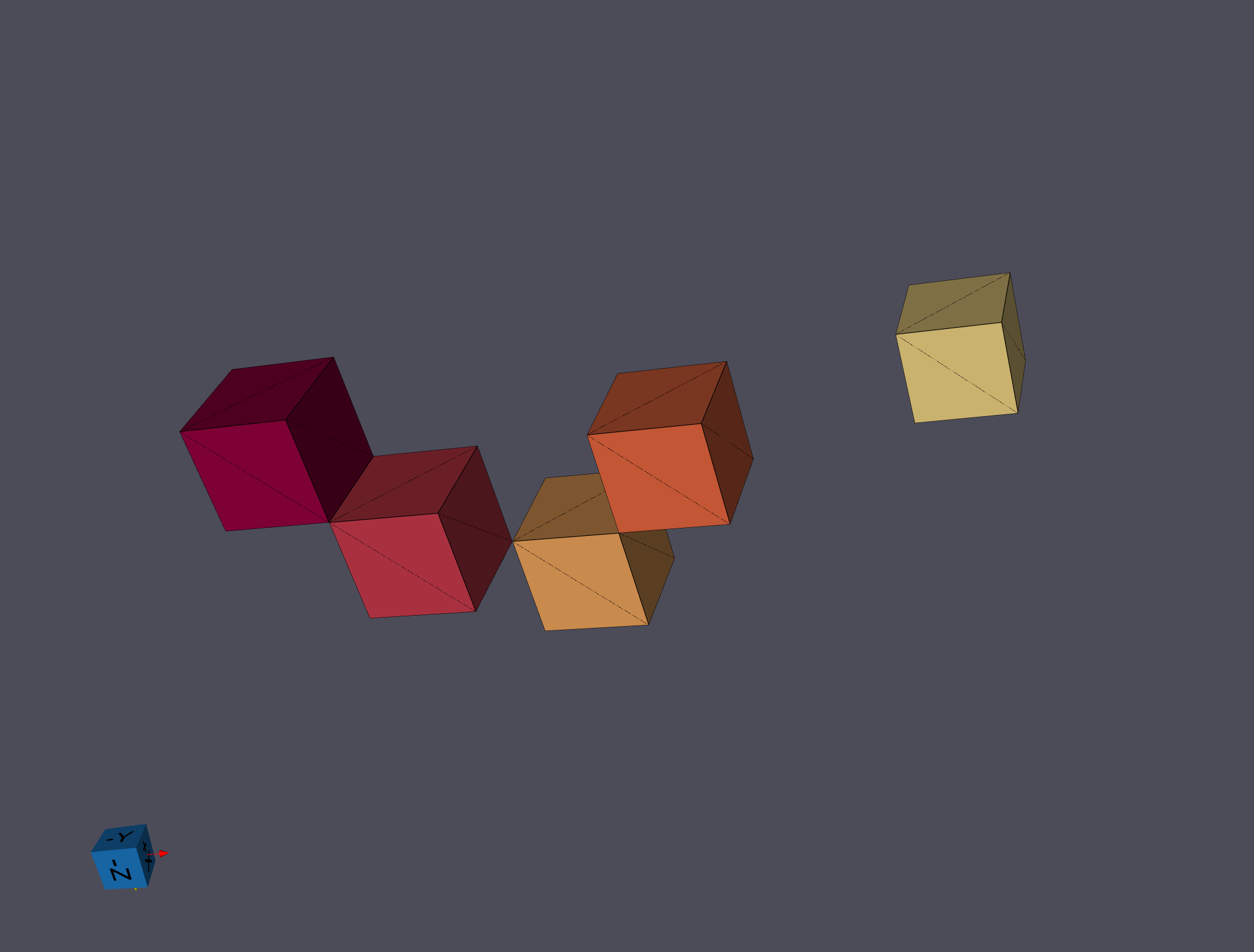

Neighbor Scheme = “Face Only” |

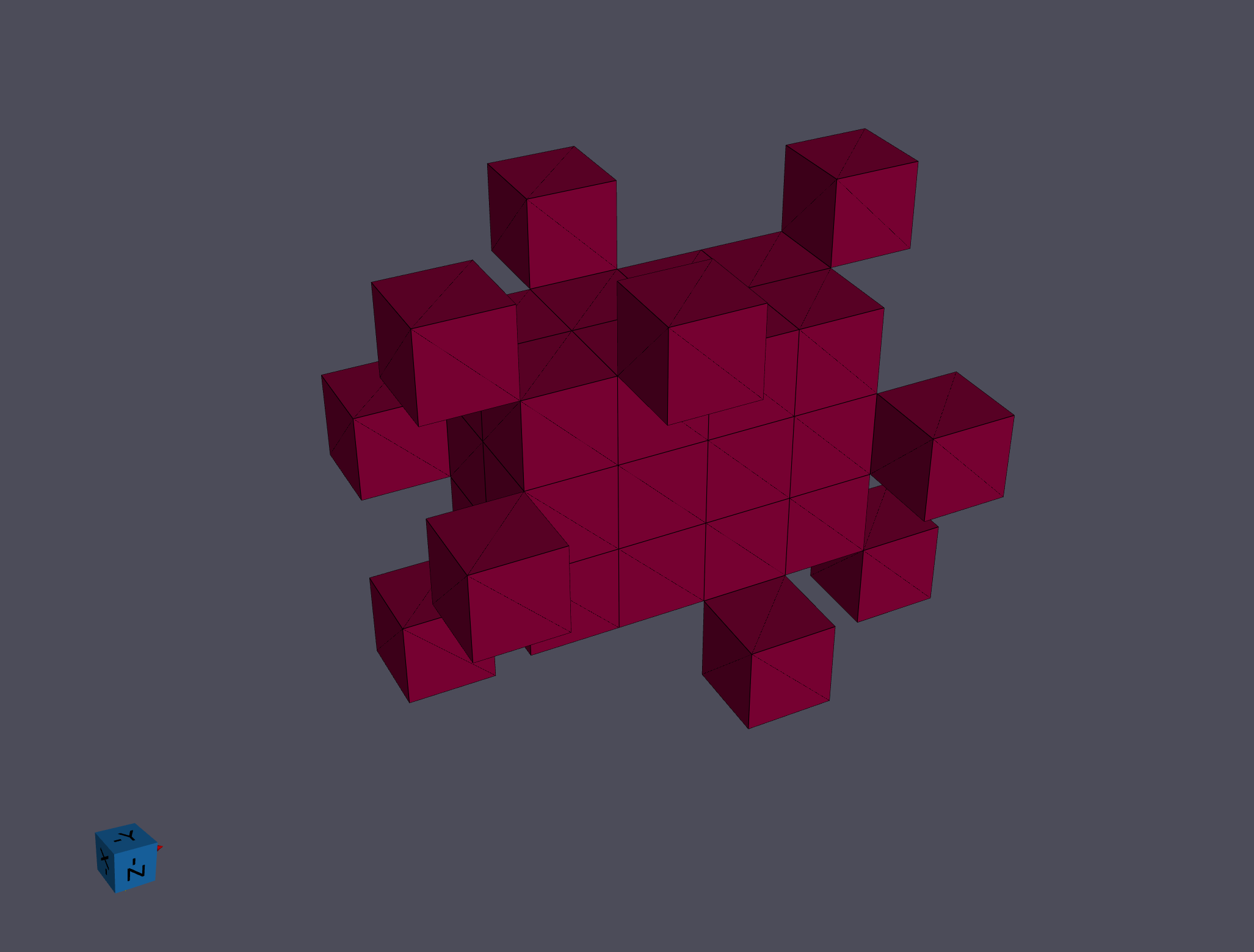

Neighbor Scheme = “All Connected” |
|---|---|
|
|

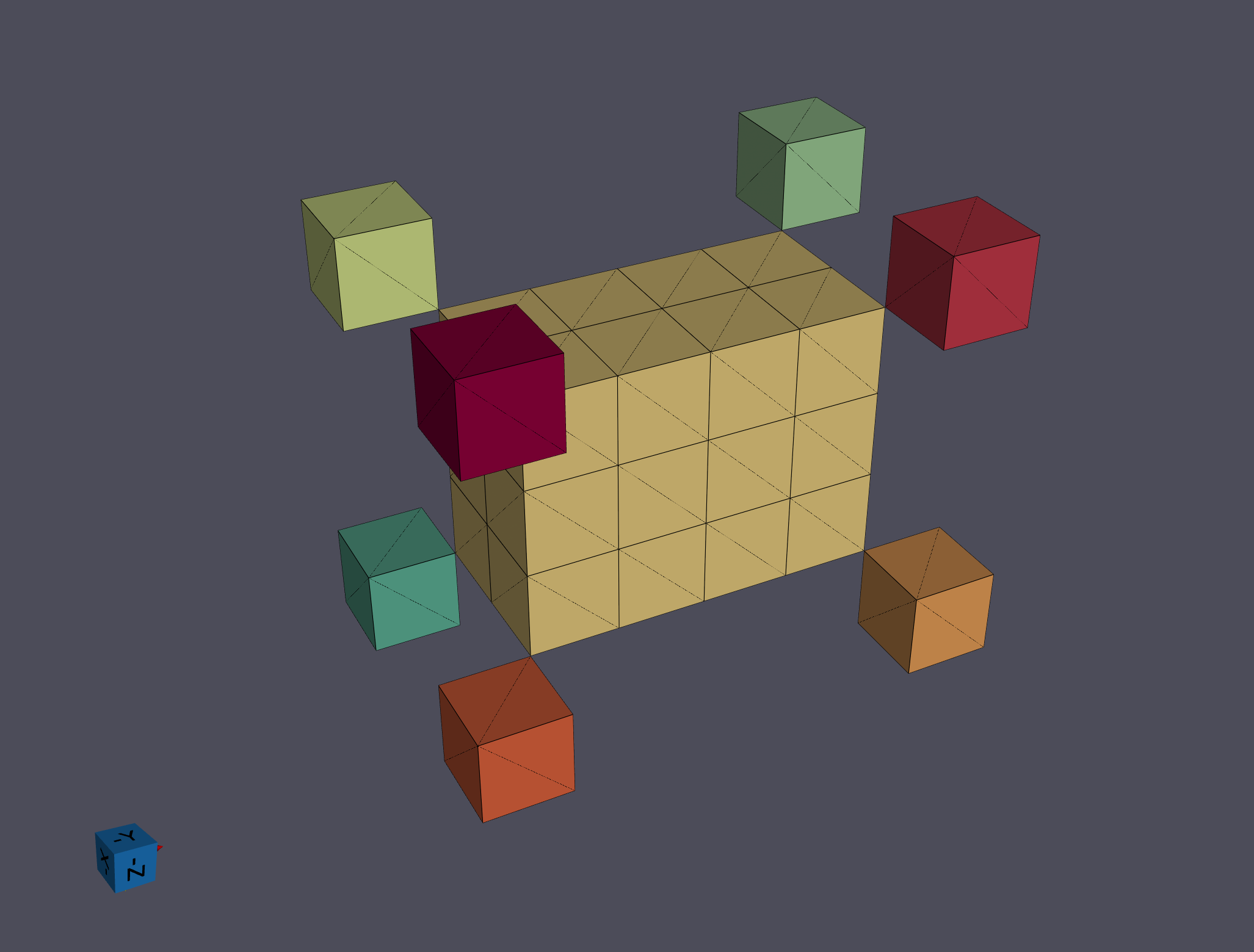

Neighbor Scheme = “Face Only” |

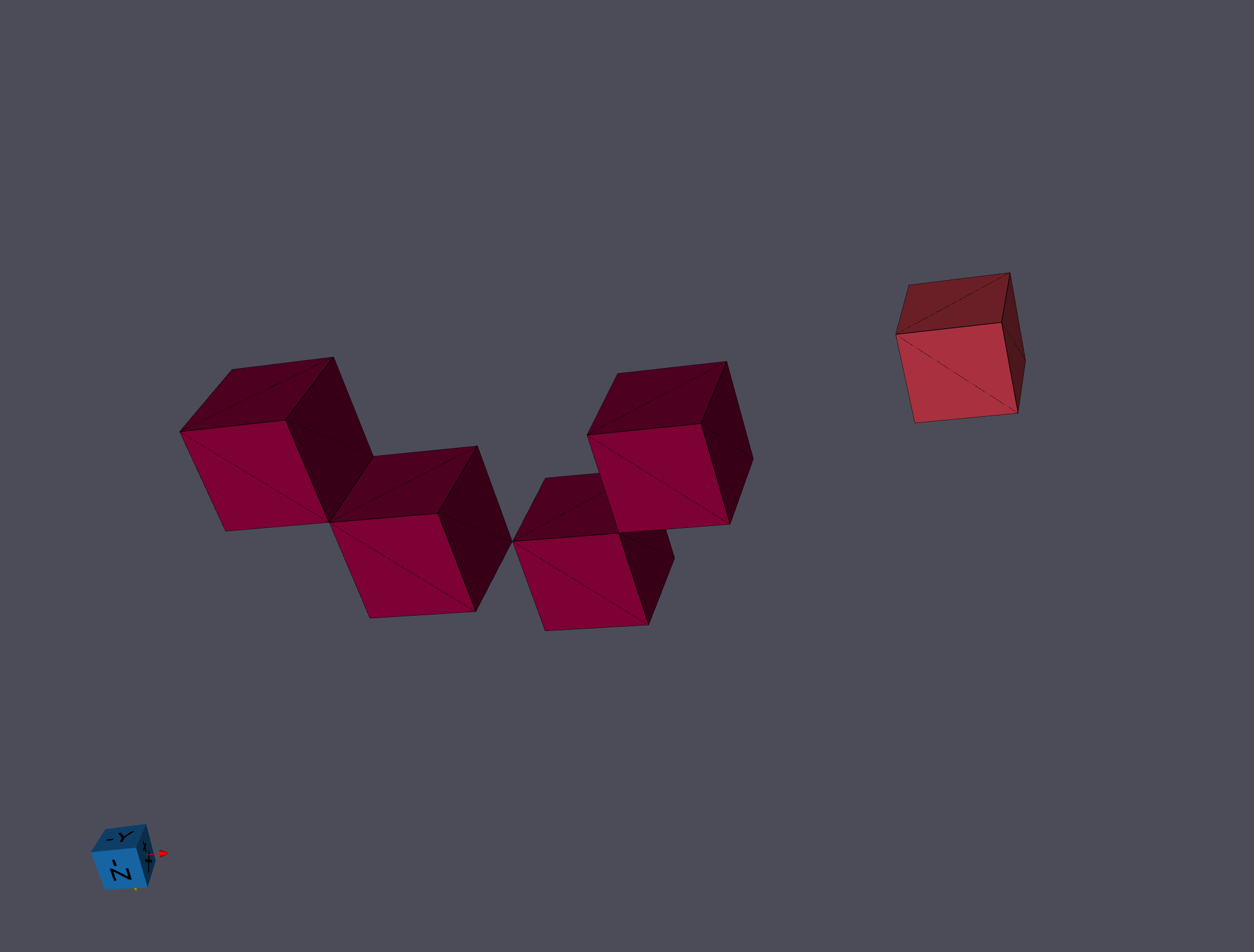

Neighbor Scheme = “All Connected” |
|---|---|
|
|
Neighbor Scheme = “Face Only” |

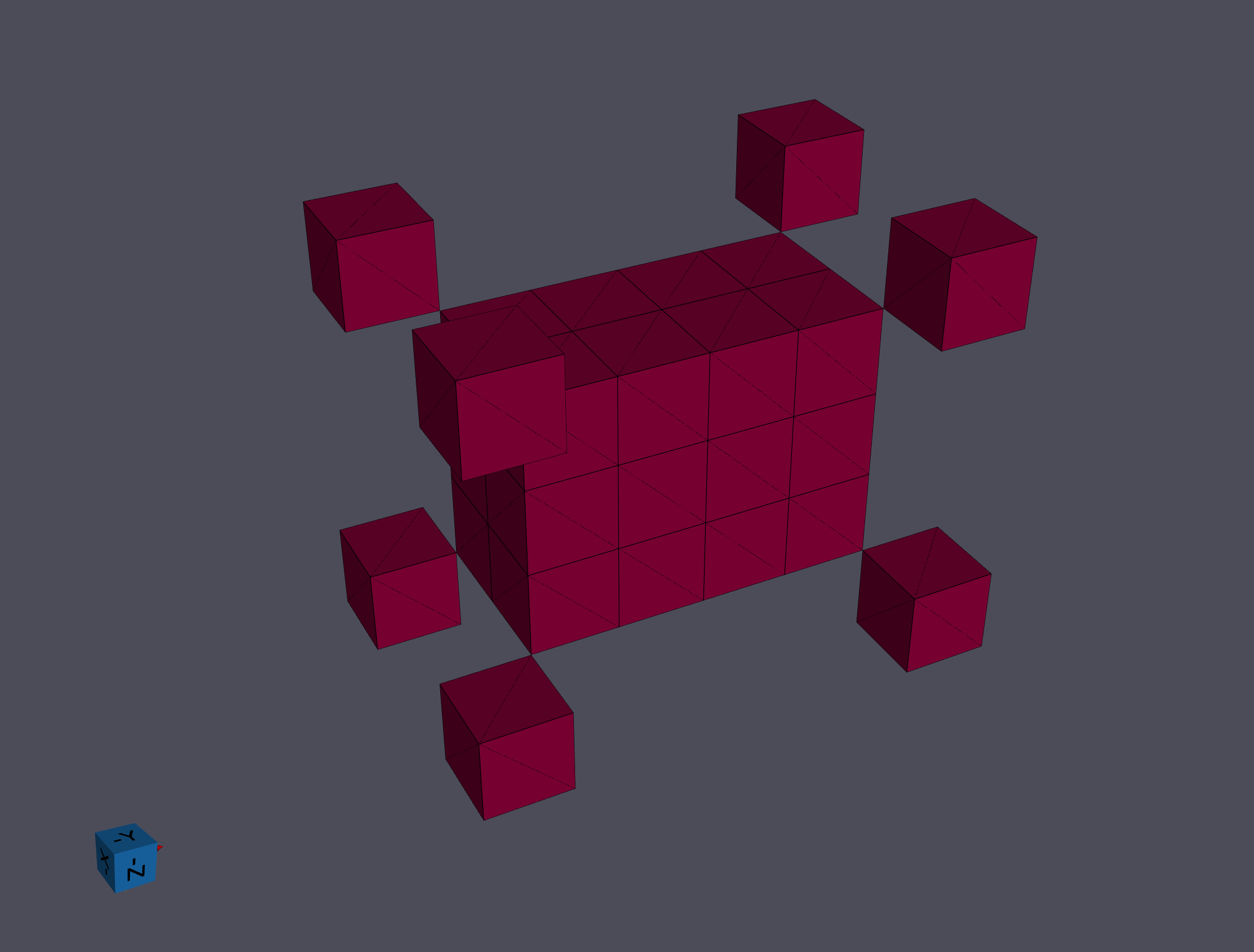

Neighbor Scheme = “All Connected” |
|---|---|
|
|
Mask Array
If Use Mask Array is enabled, cells flagged false in the mask (a boolean or uint8 Cell array) are excluded from segmentation and left with a Feature Id of 0. Masks are commonly used to restrict segmentation to the sample region or to cells with reliable orientation data (for example, a threshold on an EBSD confidence index). Masked-out Cells and unindexed Cells (phase 0) never join a Feature and keep a Feature Id of 0.
Required Input Sources
Cell Quaternions – typically read from EBSD data via Read H5EBSD, Read CTF Data, or Read ANG Data; can also be produced from Euler angles by Convert Orientations.
Cell Phases – typically read from EBSD data alongside the quaternions.
Crystal Structures – ensemble-level array read from EBSD data or created by Create Ensemble Info. Phases that are not hexagonal will produce invalid segmentation for those cells.
Mask Array (optional) – a boolean array marking valid cells, typically produced by Multi-Threshold Objects.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
C-Axis Misorientation Tolerance (Degrees) |
Scalar Value |
Float32 |
Tolerance (in degrees) used to determine if neighboring Cells belong to the same Feature |
Randomize Feature Ids |
Bool |
Specifies whether to randomize the Feature Ids with a deterministic shuffle |
|
Neighbor Scheme |
Choices |
How many neighbors to use |
Optional Data Mask
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Use Mask Array |
Bool |
Specifies whether to use a boolean array to exclude some Cells from the Feature identification process |
|
Cell Mask Array |
Array Selection |
Allowed Types: uint8, boolean Comp. Shape: 1 |
Specifies if the Cell is to be counted in the algorithm. Only required if Use Mask Array is checked |
Input Cell Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Input Grid Geometry |
Geometry Selection |
Image, Rectilinear Grid |
DataPath to input Grid Geometry |
Cell Quaternions |
Array Selection |
Allowed Types: float32 Comp. Shape: 4 |
Specifies the orientation of the Cell in quaternion representation |
Cell Phases |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
Specifies to which Ensemble each Cell belongs |
Input Ensemble Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Crystal Structures |
Array Selection |
Allowed Types: uint32 Comp. Shape: 1 |
Enumeration representing the crystal structure for each Ensemble |
Output Cell Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Cell Feature Ids |
DataObjectName |
Specifies to which Feature each Cell belongs |
Output Feature Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Feature Attribute Matrix |
DataObjectName |
The name of the created feature attribute matrix |
|
Active |
DataObjectName |
The name of the array which specifies if the Feature is still in the sample (true if the Feature is in the sample and false if it is not). At the end of the Filter, all Features will be Active |
