10.19. Compute IPF Colors
Group (Subgroup)
Processing (Crystallography)
Description

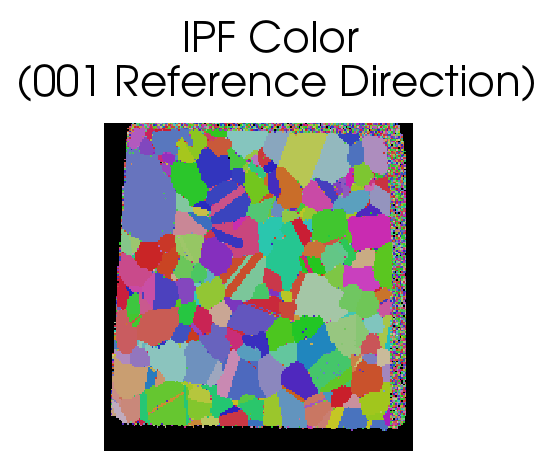

This Filter will generate inverse pole figure (IPF) colors. The user can enter the Reference Direction, which defaults to [001]. The Filter also has the option to apply a black color to all “bad” Elements, as defined by a boolean mask array, which can be generated using the Threshold Objects Filter or any other filter that generates a “mask” of the data and outputs either a bool or uint8 array.
Originating Data Notes
TSL (.ang file)
If the data originates from a TSL .ang file, then Elements that the TSL software could not reliably identify the Euler angles for will have a “Fit of Solution” = 180 and/or an “Image Quality” = 0.0.
This means that when the user runs some sort of threshold Filter the mask will be those Elements that have an Image Quality > 0 and/or Fit < 180.0
HKL (.ctf file)
If the data originates from an HKL (or Bruker) system (.ctf file) then unindexed voxels can typically be found by setting “Error” > 0
This means that when the user runs some sort of threshold Filter the mask will be those Elements that have an Error = 0
IPF Legends
IPF Legends for most all of the Laue classes can be found in the Data/OrientationAnalysis folder that comes with DREAM3D-NX distributions. They are very high resolution images and you are free to use them in any published work.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Reference Direction |
Vector of Float32 Values |
Order=,, |
The reference axis with respect to compute the IPF colors |
Optional Data Mask
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Use Mask Array |
Bool |
Whether to assign a black color to ‘bad’ Elements |
|
Mask Array |
Array Selection |
Allowed Types: uint8, boolean Comp. Shape: 1 |
Path to the data array used to define Elements as good or bad. |
Input Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Euler Angles |
Array Selection |
Allowed Types: float32 Comp. Shape: 3 |
Three angles defining the orientation of the Element in Bunge convention (Z-X-Z) |
Phases |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
Specifies to which Ensemble each cell belongs |
Input Ensemble Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Crystal Structures |
Array Selection |
Allowed Types: uint32 Comp. Shape: 1 |
Enumeration representing the crystal structure for each Ensemble |
Output Data
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
IPF Colors |
DataObjectName |
The name of the array containing the RGB colors encoded as RGB unsigned chars (x3) for each Element |
Example Pipelines
(10) SmallIN100 Full Reconstruction
(04) SmallIN100 Presegmentation Processing
(02) Single Hexagonal Phase Equiaxed
(03) Single Cubic Phase Rolled
INL Export
TxCopper_Exposed
TxCopper_Unexposed
MassifPipeline
InsertTransformationPhase
Edax IPF Colors
(01) Single Cubic Phase Equiaxed
(04) Two Phase Cubic Hexagonal Particles Equiaxed
(03) SmallIN100 Alignment
(06) SmallIN100 Synthetic
