10.17. Compute GBCD Pole Figure

Group (Subgroup)

IO (Output)

Description

This Filter creates a pole figure from the Grain Boundary Character Distribution (GBCD) data. The user must select the relevant phase for which to generate the pole figure by entering the phase index.

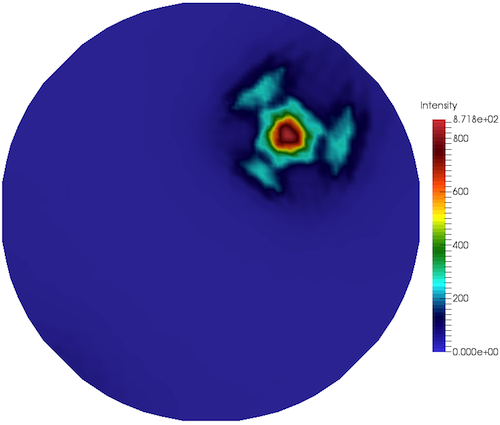

Regular Grid Visualization of the Small IN100 GBCD results

Using ParaView's Threshold filter + Cells to Points + Delaunay2D Filters

Input Parameter(s)

Parameter Name	Parameter Type	Parameter Notes	Description
Phase of Interest	Scalar Value	Int32	Index of the Ensemble for which to plot the pole figure
Misorientation Angle-Axis	Vector of Float32 Values	Order=Angle (Deg),h,k,l	Angle-Axis values for drawing GBCD
Output Image Dimension	Scalar Value	Int32	The value to use for the dimensions for the image geometry

Input Triangle Ensemble Data

Parameter Name	Parameter Type	Parameter Notes	Description
Input GBCD	Array Selection	Allowed Types: float64	5 parameter GBCD data. The 6th component is used internally to track the northern vs. southern hemisphere of the Lambert sphere
Crystal Structures	Array Selection	Allowed Types: uint32 Comp. Shape: 1	Enumeration representing the crystal structure for each Ensemble

Output Pole Figure

Parameter Name	Parameter Type	Description
Image Geometry	DataGroupCreation	The path to the created image geometry
Cell Attribute Matrix Name	DataObjectName	The name of the cell attribute matrix for the created image geometry
Cell MRD Array Name	DataObjectName	The name of the created cell intensity data array

Example Pipelines

(04) SmallIN100 GBCD

License & Copyright

Please see the description file distributed with this Plugin
