11.29. Convert Orientations To Rodrigues Geometry
Group (Subgroup)
Visualization (Crystallographic)
Description
For each orientation a point inside the stereographic sphere of radius=1 is generated. There is an option to also ensure the point is within the fundamental zone (FZ) for a given Laue class.

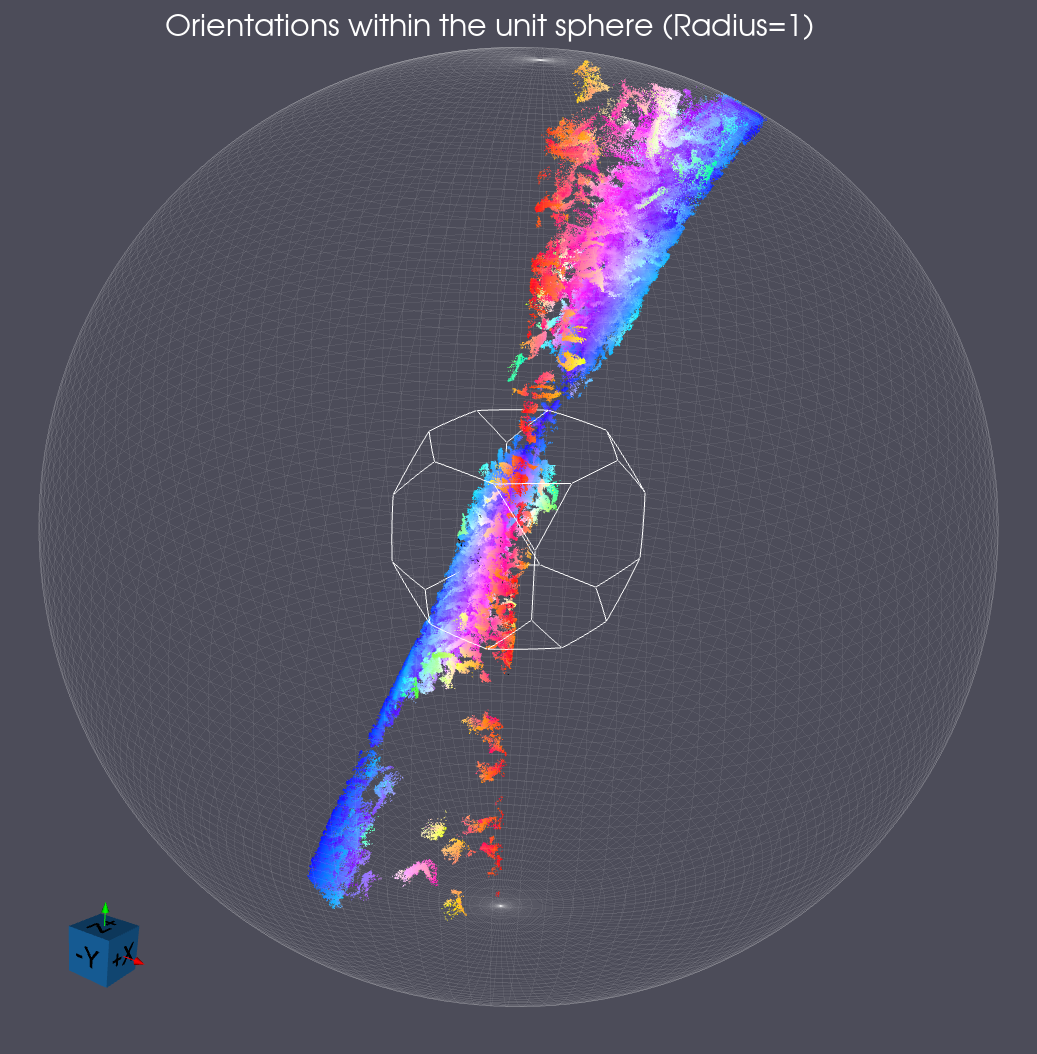

This is an image of the conversion of a data set of rotation point group 432 into Rodrigues space.

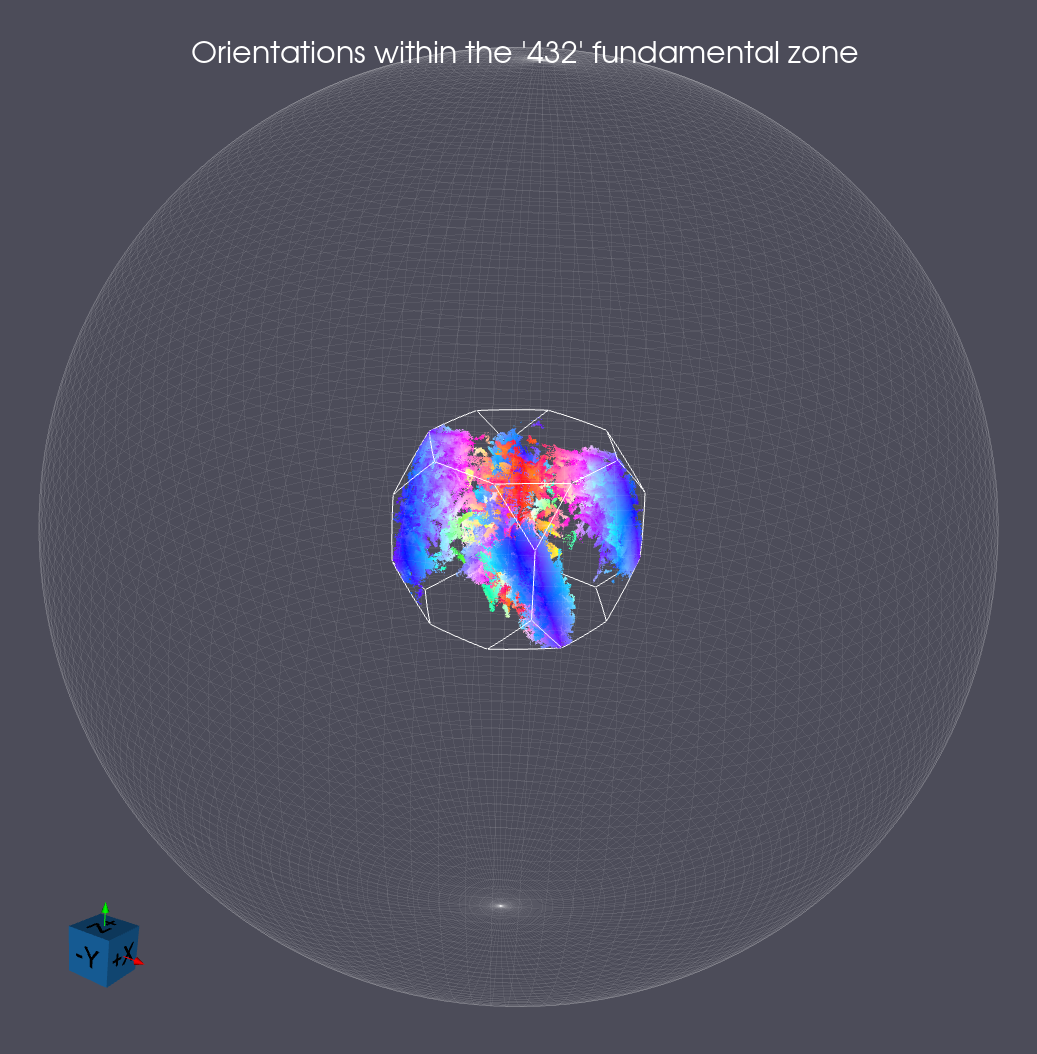

This is the same data, but with the option to convert the data to the Fundamental Zone (FZ) set to ON.
Note the coloring used in the previous images is via an IPF-Z <001> Coloring.
Input Parameter(s)
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Input Orientation Type |
Choices |
Specifies the incoming orientation representation enumeration index |
|
Input Orientations |
Array Selection |
Allowed Types: float32, float64 Comp. Shape: 349 |
The complete path to the incoming orientation representation data array |
Copy Vertex Arrays |
MultiArraySelection |
Paths to vertex-related DataArrays that should be copied to the output rodrigues vertex geometry |
|
Convert To Fundamental Zone |
Bool |
Convert the orientations to the fundamental zone. |
|
Input Phases |
Array Selection |
Allowed Types: int32 Comp. Shape: 1 |
The phases of the data. The data should be the indices into the Crystal Structures Data Array. |
Crystal Structures |
Array Selection |
Allowed Types: uint32 Comp. Shape: 1 |
Enumeration representing the crystal structure for each Ensemble |
Output Vertex Geometry
Parameter Name |
Parameter Type |
Parameter Notes |
Description |
|---|---|---|---|
Output Vertex Geometry |
DataGroupCreation |
The complete path to the vertex geometry that will be created |
|
Output Vertex Attribute Matrix Name |
DataObjectName |
The name of the vertex attribute matrix that will be created |
|
Output Shared Vertex List Name |
DataObjectName |
The name of the shared vertex list that will be created |
Example Pipelines
License & Copyright
Please see the description file distributed with this Plugin
